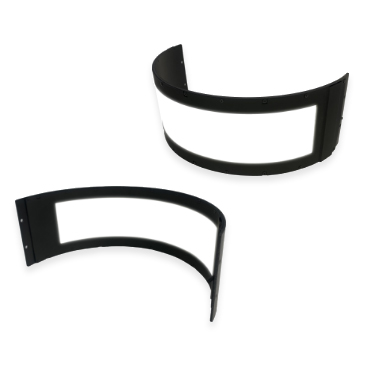

OLB-LT Series [Organic LED Lights]

Thin, bendable* OLED lighting suitable for observing workpieces on curved manufacturing lines and illuminating large circular workpieces from the inside.

  • Bending radius can be freely designed upon request*
  • Achieves the brightness and uniformity required for machine vision applications
  • Lightweight, low heat next-generation light source
  • Inner and outer surface emission available
  • Notifies the user regarding recommended lighting replacement periods by connecting to a dedicated controller

* Minimum bending radius: 100 mm.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales office for details.

Features of OLB-LT

Bending radius can be freely designed upon request*1

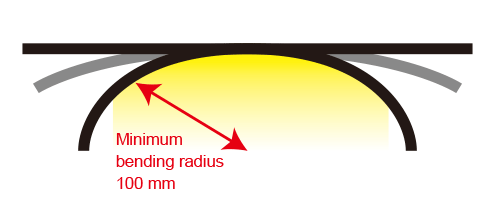

Inner surface emission type

Model example:OLB-LT-100SW-IS(Bending radius: 100mm)
Model example:OLB-LT-100SW-IS(Bending radius: 100mm)

Model example:OLB-LT-100SW-IS (Bending radius: 100mm)

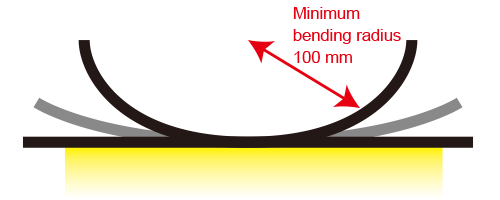

Outer surface emission type

Model example:OLB-LT-100SW-IS(Bending radius: 100mm)
Model example:OLB-LT-100SW-IS(Bending radius: 100mm)

Model example:OLB-LT-100SW-OS (Bending radius: 100mm)

*1 Minimum bending radius: 100 mm.

Application Examples

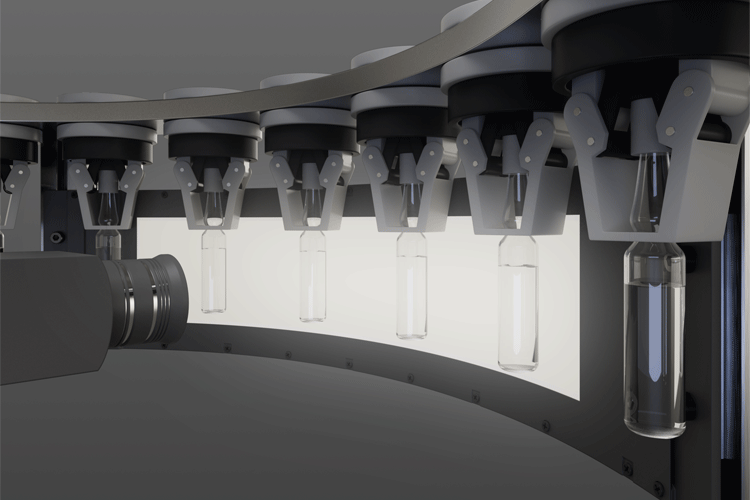

Image of inspection of chemical ampoule using inner light emitting type

  • Uniform direct illumination of a cylindrical workpiece
  • Backlighting of cylindrical transparent workpieces such as plastic bottles and ampoules of chemicals
  • Backlighting of a transparent workpiece moving on a circular rail

Achieves the brightness and uniformity required for machine vision applications

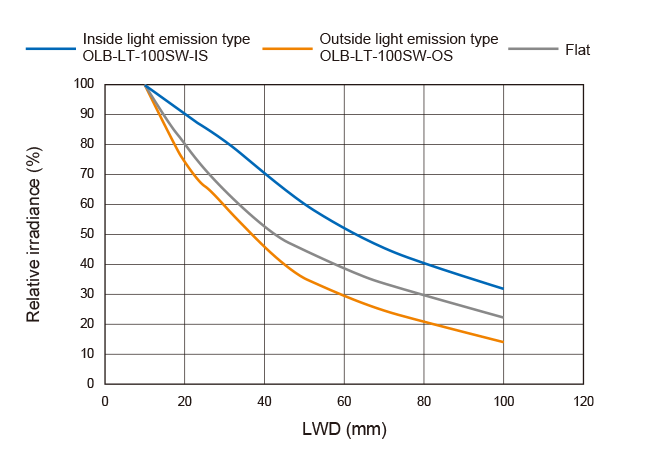

Relative irradiance*2 graph (LWD characteristics *3）

Relative irradiance graph

*2 Irradiance on the optical axis
*3 Illuminating distance from the Light Unit to the workpiece

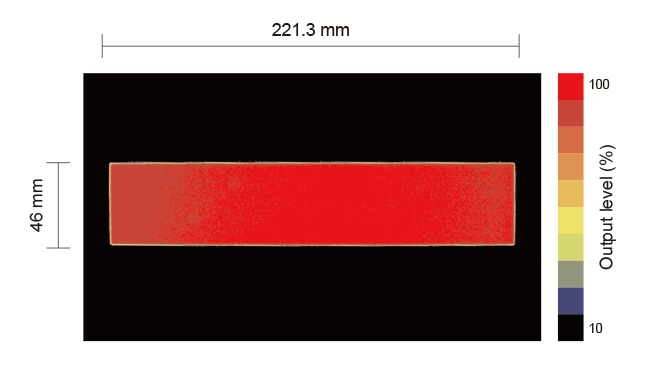

Uniformity (Relative radiance)*4

Uniformity (Relative radiance)

*4 Measured in a flat state

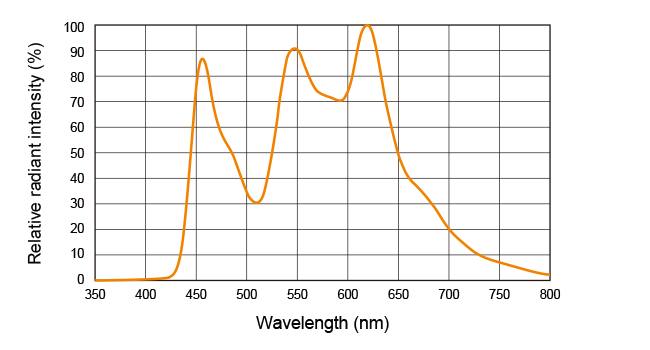

Spectral Distribution*5

Spectral Distribution

*5 Data is for reference only. Not a guarantee of product quality.

Rental demo kit

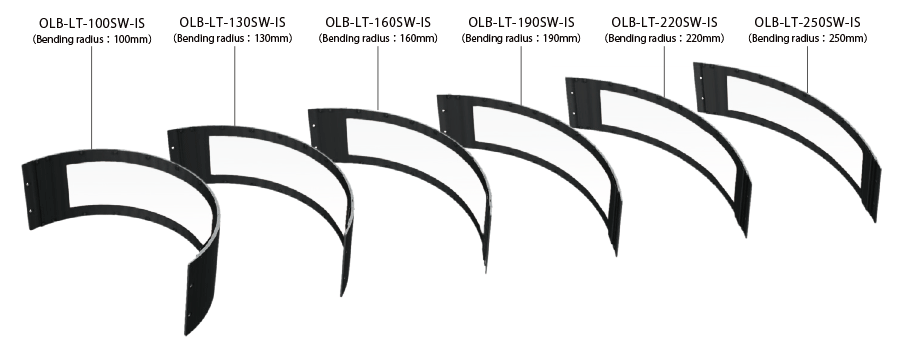

Rental demo kit that allows you to try bending radii according to the installation environment

Rental demo kit that allows you to try bending radii according to the installation environment

A demo kit is available for you to choose from 2 types of light emission, i.e. inner surface emission and outer surface emission, and also 6 bending radii.
You can apply for the rental demo kit via your sales representative

*Image of housing for inner surface emission. Outer surface emission is also available with 6 types of bending radii.

选件

OC Series (OLF-LT / OLB-LT dedicated controller)

Dedicated controller with predictive maintenance function (lifetime prediction)
A predictive maintenance function is provided by automatically recognizing connected lighting and accumulating data on lighting usage.
* When using a light unit at the maximum brightness specified, use the OC-G-5646-2-ET power supply.

OC-0736-1-ET

OC-0736-1-ET

OC-0736-1-ET

OC-G-5646-2-ET

OC-G-5646-2-ET

OC-G-5646-2-ET

OLCB Series (OLF-LT / OLB-LT dedicated extension cable)

Model name OLCB-2 OLCB-3 OLCB-5
Cable length 2 m 3 m 5 m
Weight 127 g max. 182 g max. 292 g max.

OLCB-2

OLCB-3

OLCB-5

*A 1 m cable is supplied with this light.
