These Line Lights are ideally suited for detecting bumps and subtle vertical wrinkles in plain sheets that disperse light.
Download Pamphlet PDF
Achieves angled illumination

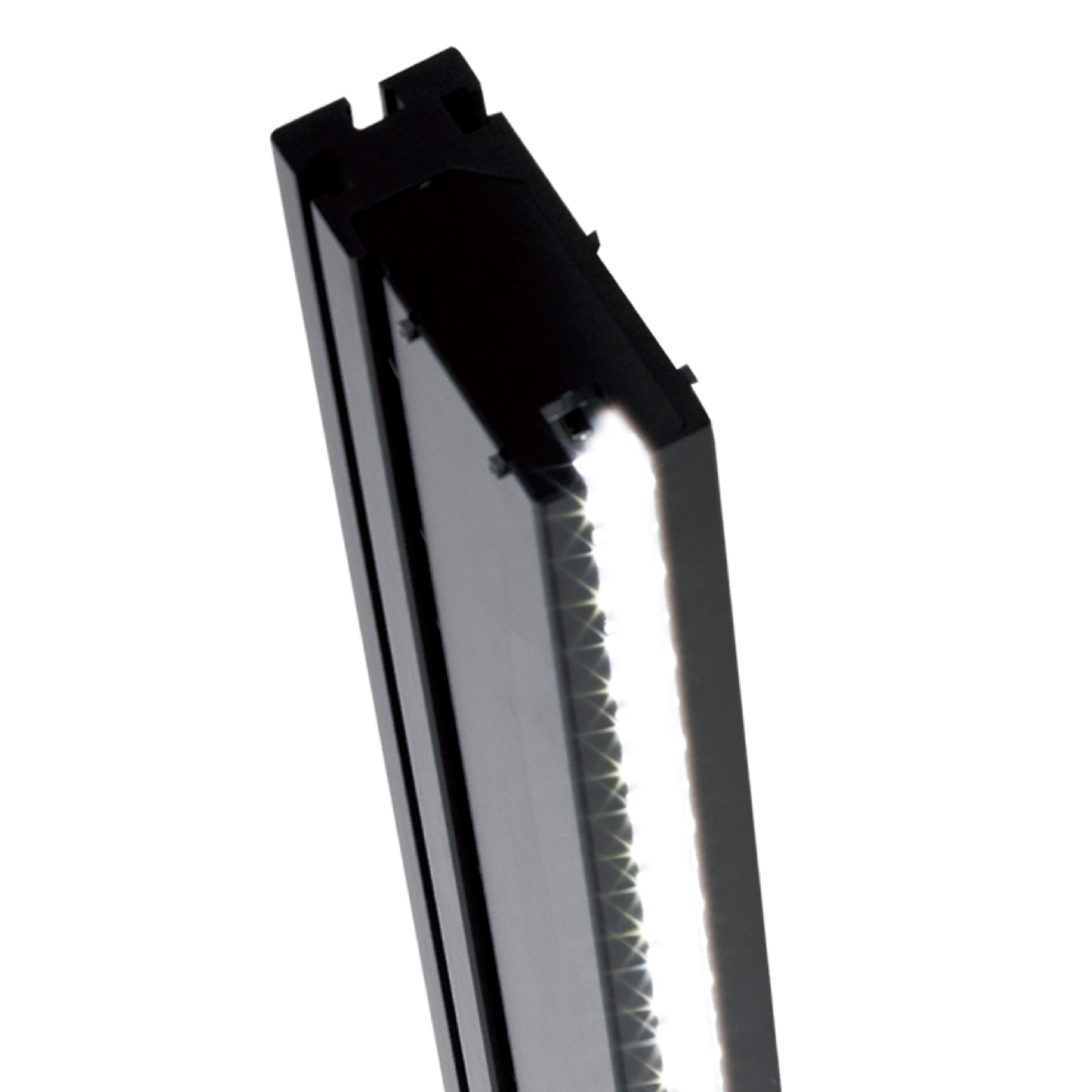

The LNDG series enables detection of bumps and subtle vertical wrinkles, which were difficult to detect with conventional line sensor lights, in paper or non-woven fabric that disperses light.
Conceptual image of angled illumination
- Fan-less (Natural air cooling)
- Error detection support
- Emitting surface 300 to 3,000 mm long (can be made in units of 100 mm)
Bumps and subtle vertical wrinkles can be detected
Inspections for vertical wrinkles in paper labels
Achieves angled illumination using an original optical design. This is a line sensor light perfect for detecting moving-direction bumps and subtle vertical wrinkles.
Select a Light Unit that is longer than the width of the workpiece.
The LNDG-series Light Unit emits light at an angle to enable detecting "vertical wrinkles and bumps." When you select a Light Unit, select one that is at least 200 mm longer than the width of the workpiece to be inspected. We recommend a illuminating distance of 50 mm to obtain sufficient illumination.

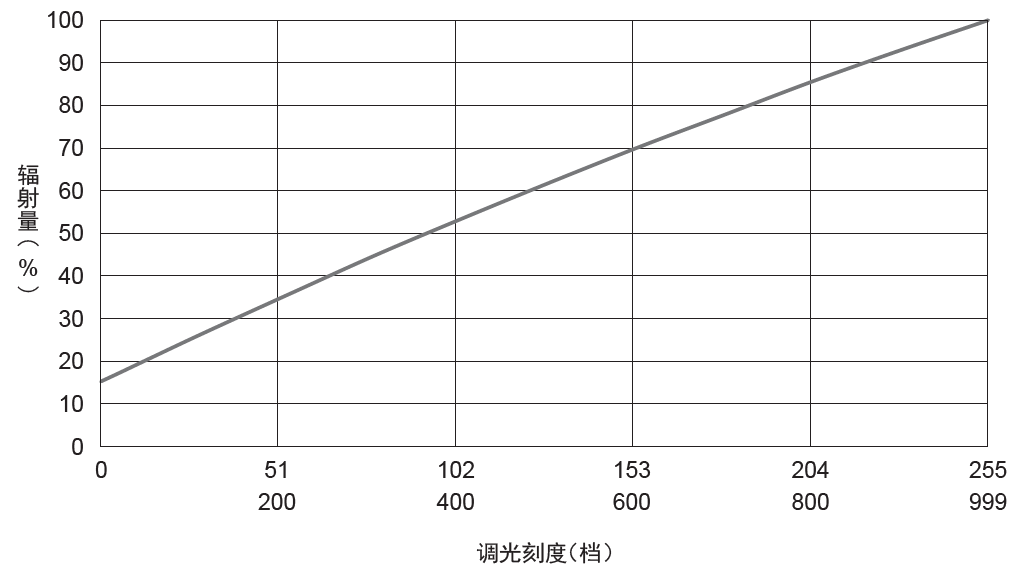

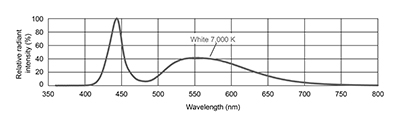

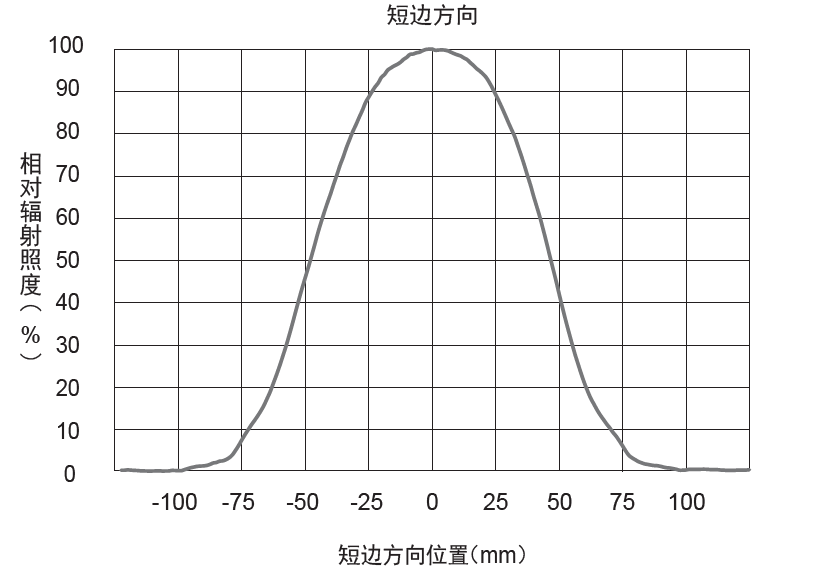

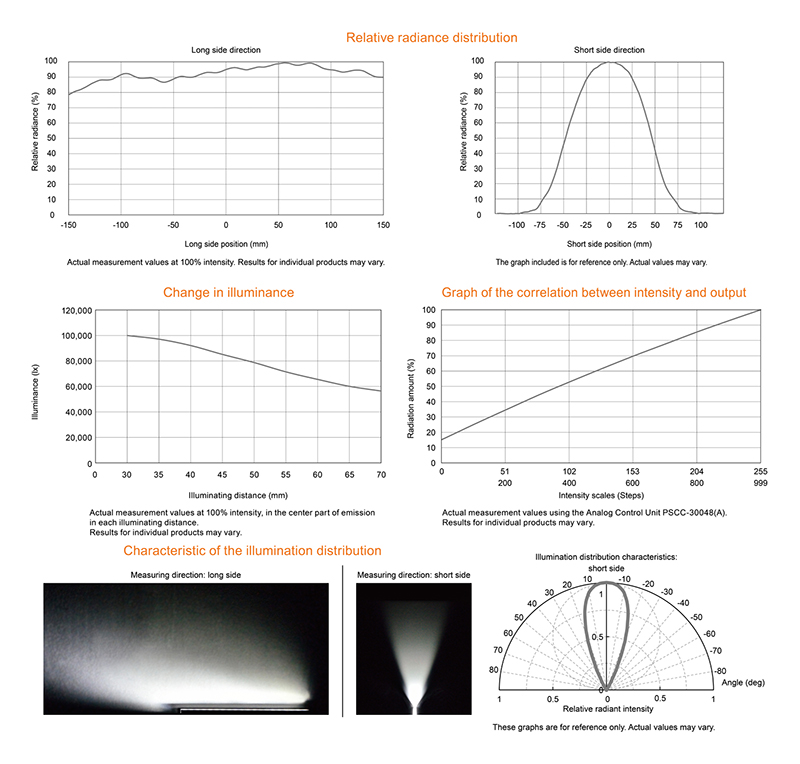

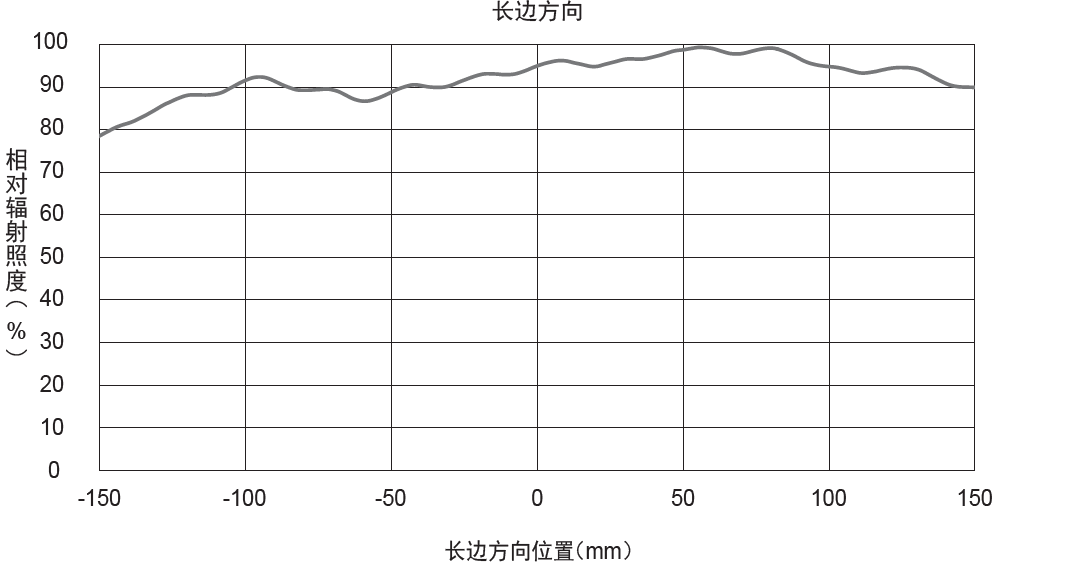

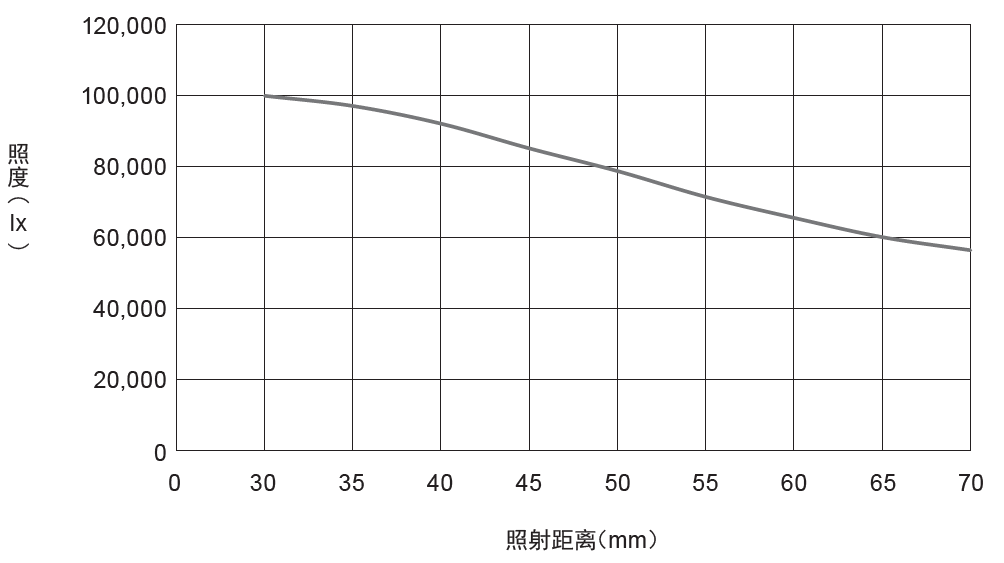

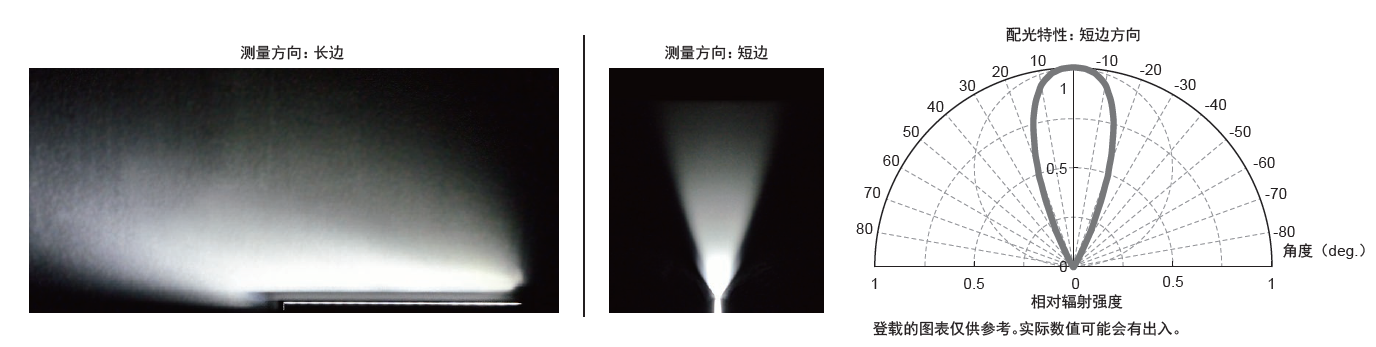

Data (Representative example)
※The graph included is for reference only. Actual values may vary.
The data included is for reference only. Actual values may vary.
