These Line Lights achieve high illuminance and high uniformity.
Error detection function helps you avoid accidents.
Download Pamphlet PDF

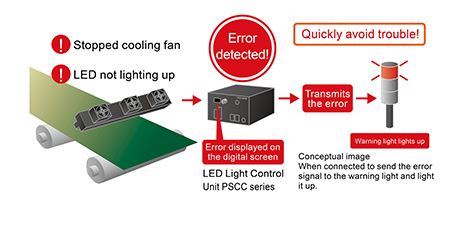

Avoid trouble with error detection

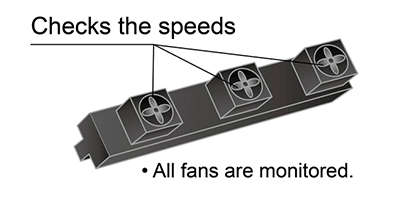

①Error detection for cooling fans
An error is detected should a fault occur, such as insufficient speed or a stop in the cooling fans.
②Error detection for the LEDs
Detects dead LEDs due to an open in the Light Unit circuit or a shorted LED.
Error detection is a function included with the PSCC series,the recommended Control Units.
Illuminance of 900,000 lx with forced air cooling (fan cooling)
Perfect for applications that demand high-speed image processing. Also allows for even imaging with a high degree of uniformity.

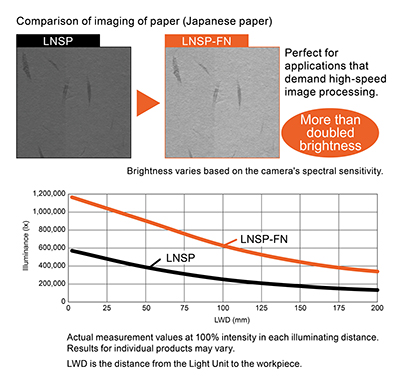

Comparison of illuminance for the LNSP and LNSP-FN
The graph included is for reference only. Actual values may vary.

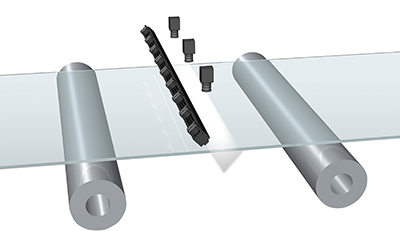

Glass damage inspection

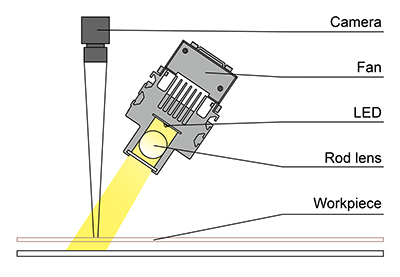

High-output Line Lights with forced air cooling (fan cooling). Because light does not easily diffuse, there is little loss for the amount of light, allowing for illumination over long distances.

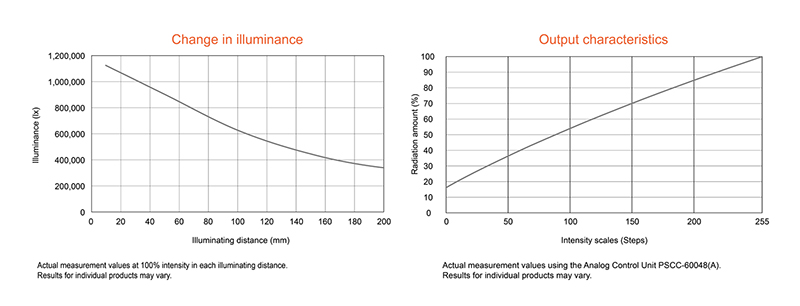

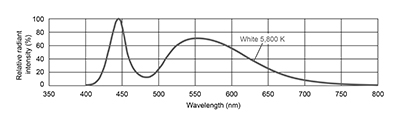

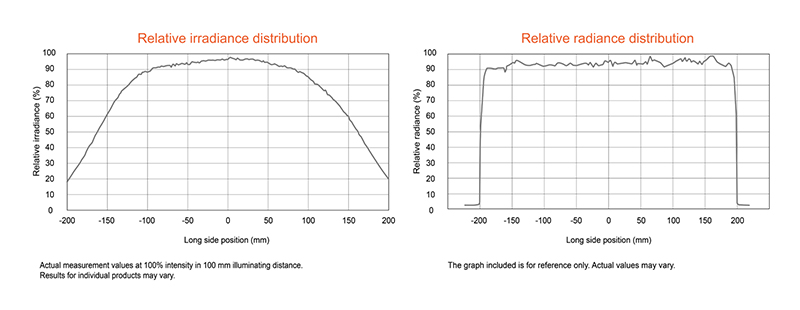

Data (Representative example)
※The graph included is for reference only. Actual values may vary.
The data included is for reference only. Actual values may vary.
