FPQ3 Series

* Low-angle Light Units perfect for square workpieces:
detecting the outline of corners and preventing glare.
* Achieved high output up to double that of conventional products.
* 8 sizes and a total of 24 models.
* Installation holes on the top and lateral surfaces increase installation flexibility.

特点

High-Output (2x Conventional Products)

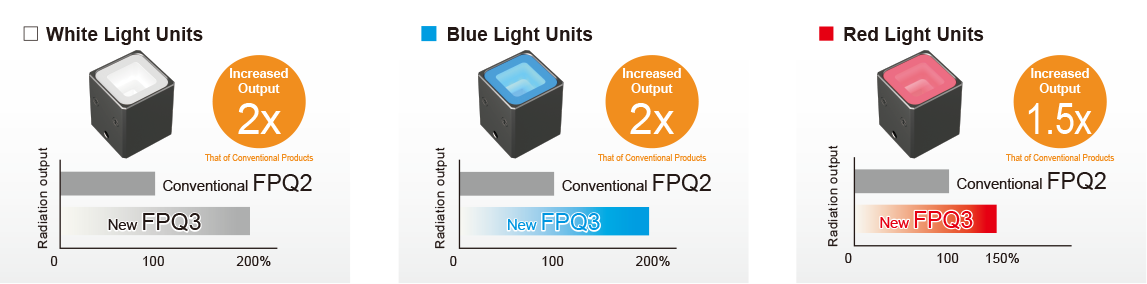

Output has been increased by 2x for white and blue, 1.5x for red Light Units.
Furthermore, output is more than doubled when used with a POD-series Strobe Overdrive Control Unit.

Comparison of the conventional products of the same color. The data included is for reference only. Actual values may vary.

High-Output Double That of Conventional Products(image)

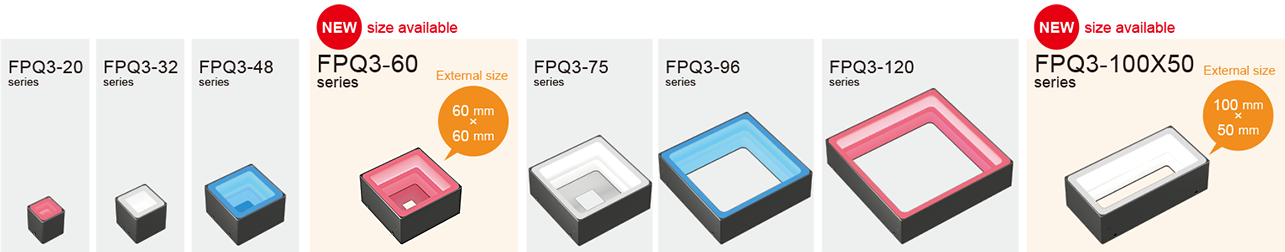

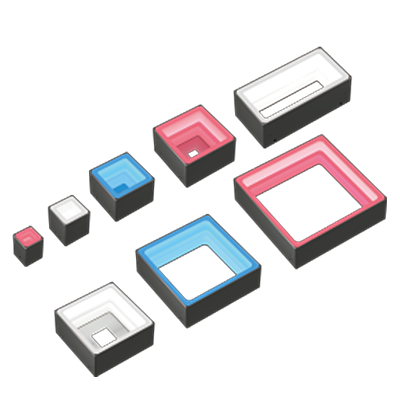

Expanded Line with 8 Sizes and a Total of 24 Models

External sizes of 60 × 60 mm and 50 × 100 mm (rectangular type) are supported.

The outer dimensions are not changed for the products of the same size as the conventional products.

Expanded Line with 8 Sizes and a Total of 24 Models(image)

Perfect for Square Workpieces

Light from the LEDs installed above is transmitted through the light-guiding diffusion plate and diffused light is illuminated from four directions on the workpiece from a low angle.
This is perfect for square workpieces.

Perfect for Square Workpieces(image)

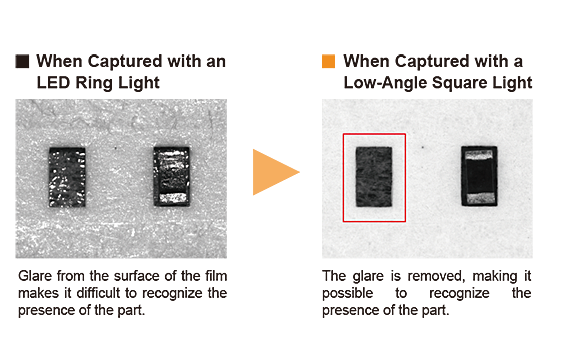

When Captured with an LED Ring Light(Glare from the surface of the film makes it difficult to recognize the presence of the part.)--When Captured with a Low-Angle Square Light(The glare is removed, making it possible to recognize the presence of the part.)

High-Flexibility in Installation

Newly added installation holes on the lateral surfaces of all models increase installation flexibility.

The products of the same size of the conventional products can be installed with the same holes.

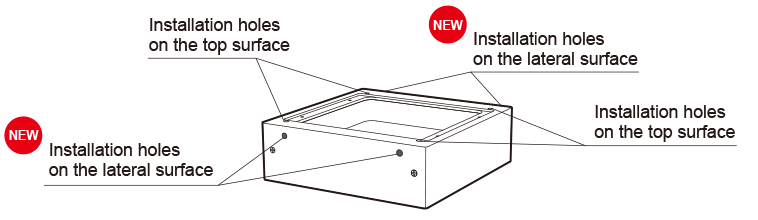

Installation Holes on the Lateral Surfaces

Installation Holes on the Lateral Surfaces(image)

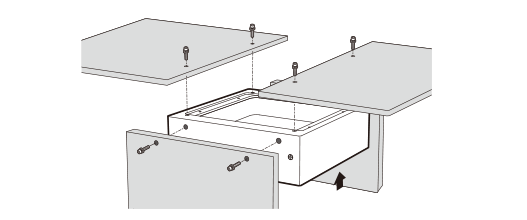

Conceptual Image for Installation

Conceptual Image for Installation(image)

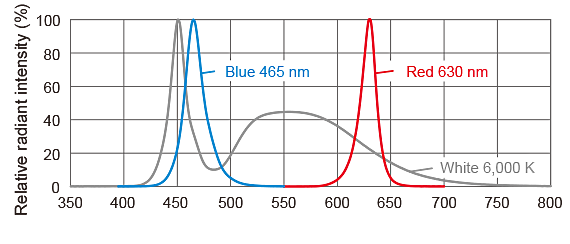

Spectrum distribution

Light spectrum(image)

The data included is for reference only. Actual values may vary.

Imaging Example

Imaging Examples for the FPQ3-100X50 Light Unit

Illumination from a low angle clearly highlights the outline of workpieces.

Imaging Examples for the FPQ3-100X50 Light Unit(image)

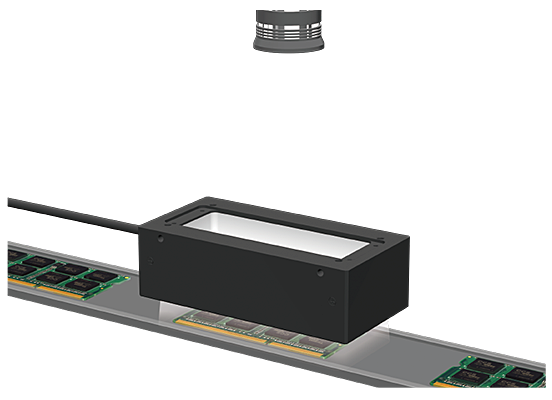

Conceptual Image for Illumination

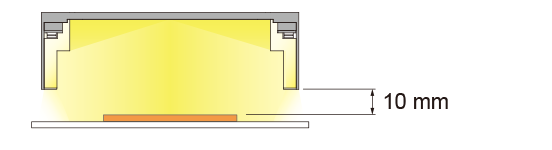

With uniform and diffused light at a low angle from four directions of the workpiece, the corners stand out.

Conceptual Image for Illumination(image)

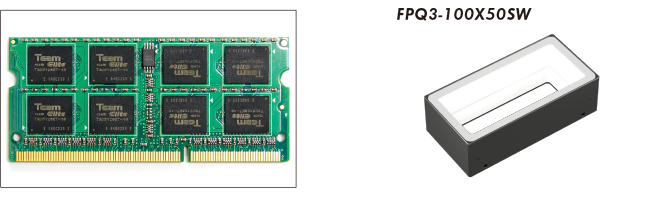

Workpiece Image: PC memory boards

FPQ2-100X50SW(image)

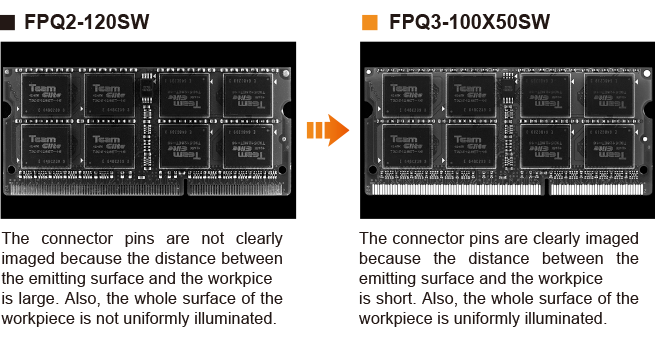

FPQ2-120SW The connector pins are not clearly imaged because the distance between the emitting surface and the workpiece is large. Also, the whole surface of the workpiece is not uniformly illuminated. -------FPQ3-100X50SW The connector pins are clearly imaged because the distance between the emitting surface and the workpiece is short. Also, the whole surface of the workpiece is uniformly illuminated.(image)

特殊定制例

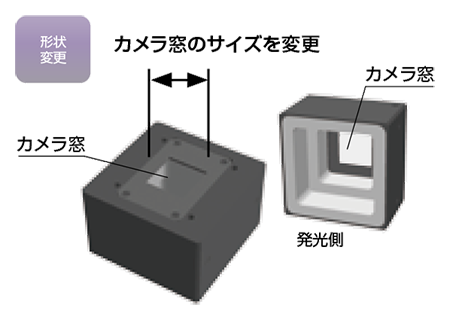

Custom Ordered Products and Computational Imaging

Full-color (RGB) Type

Full-color (RGB) Type(image)

Controls red, blue, and green light to create the color you want
with just one Light Unit.
If there are workpieces with different colors but the same shape, or if there are different types of products on the same assembly line, you were required to set up the Light Units of different LED colors to detect the features. Full-color type Light Unit emits and controls red, blue, and green light with a single unit. This enables you to take the best image to meet your needs.

Segmented Illumination Type

Segmented Illumination Type(image)

The segmented emitting surfaces strobe separately
to image the peculiarity of the workpiece.

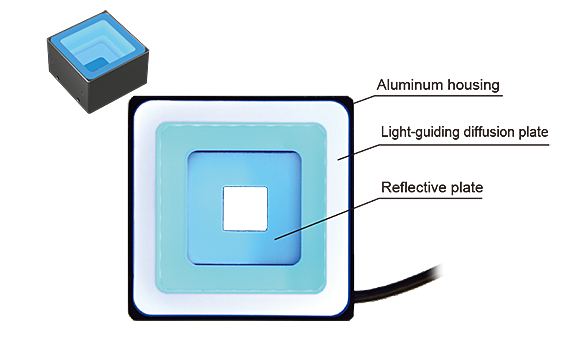

The emitting surface is divided into four segments, which correspond to the four sides of the unit and are separately controlled. This enables the optimum illumination to select the target surface and to fit with the shape of the workpiece. You can select the brightness, strobing ON/OFF, and the timing for each segment and image the peculiarity of the workpiece.

选件

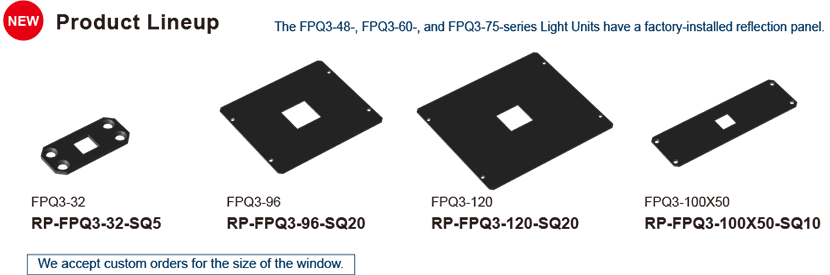

Optional Reflection Plates (Sold Separately)

Installing the reflection plate on the Light Unit enhances the dome effect, which enables highly-uniform and diffused illumination.

Product Lineup 　FPQ3-32(RP-FPQ3-32-SQ5)、FPQ3-96(RP-FPQ3-96-SQ20)、FPQ3-120(RP-FPQ3-120-SQ20)、FPQ3-100X50(RP-FPQ3-100X50-SQ10)

Refer to "Reflection Plates" page for the detailed information including the dimensions.

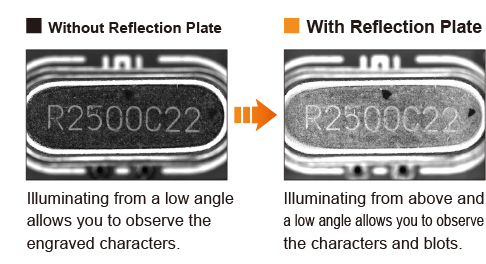

Without Reflection Plate:Illuminating from a low angle allows you to observe the engraved characters.-------With Reflection Plate:Illuminating from above and a low angle allows you to observe the characters and blots. (image)
