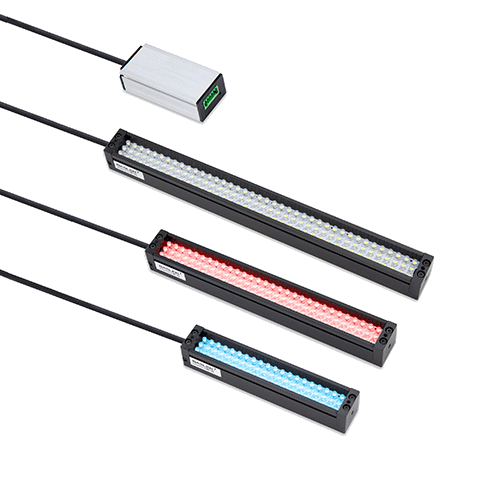

BCL Series (Bar Light)
BCL series bar lights connect to Basler ace U and ace L camera models by plug and play. Control lighting mode, lighting time, and dimming of lighting through the camera software.
Available in 3 sizes: 100 x 15 mm, 150 x 15 mm, 200 x 15 mm and 3 LED emission colors: red, blue, and white.
Diffuser and polarizing plate are available as options.
特点
Direct communication between camera and light thanks to the Basler SLP feature
- Basler SLP feature does not require complicated calculation or lighting setup. which is a bottleneck when building an image inspection system using a camera and lighting.
- Lighting control is possible with Basler's dedicated pylon Camera Software Suite.
- By sharing the power supply for cameras and lighting, it is possible to reduce the number of devices for system construction and reduce costs.

Abundant lighting lineup
- Four types of lighting: bar, ring, flat, and flood lights, available in red, white, and blue emission colors (27 models in total)
- Ideal for speedily building an image inspection system.

特性 ・数据
Reference model data: BCL-100X15W
Note: The data included is for reference only. Actual values may vary.
Spectrum

Relative Illuminance

Relative Uniformity

成像实例
Imaging of damage in sheet metal (hairline finishing)

Description | Visual inspection |
---|---|
Workpiece | Aluminum sheet (hairline finishing) |
Suitable lighting | Proposed the optimal illuminating angle and illuminating direction |
Result | Extracts only the damage |
Introduction Video
