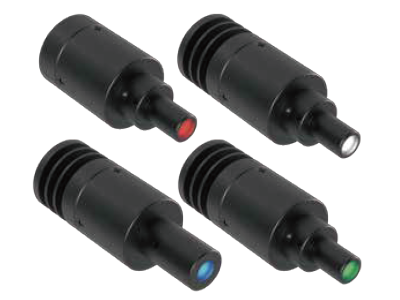

HLV3 Series Cylindrical Type
Expanded lineup of high-power spot lights now includes cylindrical models.
Choose according to the inspection environment. * Same optical system as HLV3 Series L-type.
- Ideal for replacing equivalent HLV2 model
- Optimized for CCS’s high-resolution telecentric lenses
- Max. 2.5 times higher power than HLV2*
- High-performing parallel and condenser lenses for greater versatility
* In comparing HLV2-22SW-3W (white) with HLV3-22SW-4C (white)
- Standard Model
- Standard Model
- High Output Models

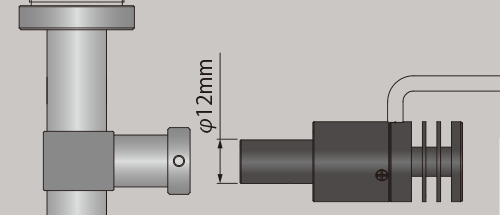

- Φ12-mm Light Emitting Tip
Lens light mounting cap size compatible with Φ12mm. Replacing with a straight light guide is also safe.
Specialized models (compact, high uniformity, and reduced individual differences in brightness types) are also available.
See the HLV3 Series page for product details.
Compact and Lightweight Models HLV3-14
High Uniformity Models HLV3-14-HU*1Emitting surface of HLV3-14RD*2
Emitting surface of HLV3-14RD-HU*2
*1 HLV3-22-HU are available as custom order.
*2 Comparison using our measurement conditions.The data included is for reference only and the results for individual products may vary.
Reduced individual differences in brightness HLV3-22-1/-2/-2-1220/-4S/-4M
Revamped Line of Lights to Satisfy Your Specific Needs
|Type||Comparison of brightness with conventional HLV2*1||Comparison of brightness within HLV3*2||Recommended magnification
for telecentric lenses
|RD (red)||SW (white)||BL (blue)||GR (green)||RD (red)||SW (white)||BL (blue)||GR (green)|
|HLV3-22-1C||1.6 x||1.8 x||1.4 x||1.4 x||1.0 x||1.0 x||1.0 x||1.0 x||1.0 <|
|HLV3-22-2C||1.6 x||1.9 x||1.5 x||1.5 x||1.7 x||1.6 x||1.6 x||1.6 x||1.0 <|
|HLV3-22-2C-1220||1.6 x||1.9 x||1.5 x||1.5 x||1.7 x||1.6 x||1.6 x||1.6 x||1.0 <|
|HLV3-22-4C||2.1 x||2.5 x||1.9 x||1.9 x||2.4 x||2.2 x||2.1 x||2.0 x||1.0 <|
*1 Comparison between the following units in the same colors: HLV3-22-1C and HLV2-22, HLV3-22-2C/-2C-1220/-4C and HLV2-22-3W.
*2 Comparison of brightness within HLV3 is based on HLV3-22-1C emission colors.
|Model name*1||Input current (max.)||Power Consumption (max.)||Weight (max.)|
|RD (red)||SW (white)||BL (blue)||GR (green)|
|HLV3-22□□-1C||385 mA||1.1 W||1.3 W||1.4 W||1.4 W||34 g|
|HLV3-22□□-2C||700 mA||2.0 W||2.4 W||2.6 W||2.7 W||39 g|
|HLV3-22□□-2C-1220||700 mA||2.0 W||2.4 W||2.6 W||2.7 W||40 g|
|HLV3-22□□-4C||1000 mA||3.0 W||3.5 W||3.8 W||4.0 W||39 g|
*1 □□ in the model name indicates the LED emission color. RD: Red, SW: White, BL: Blue, GR: Green
Strobe HLV3 series up to 2.4x brighter for high-speed applications*1
HLV3-22-4C/4M/4S series-related light
emitting colors (red, white, blue, green)
and HLV3-22IR860 (infrared)
Special order product
Strobe overdrive power
*1 This compares HLV3-22-4/IR860 with PJ2 power supply and with the power adapter and strobe overdrive power supply. This is a comparison based on our measurement conditions, etc.,
and does not guarantee quality or performance.
*2 Branch cables cannot be used.
*3 This adapter enables strobe overdrive mode with the HLV3 series
|Model name*1||Lens||Extension cables||Recommended Control Units|
*1 □□ in the model name indicates the LED emission color. RD: Red, SW: White, BL: Blue, GR: Green.
*2 The PD3-3024-3 and PD3-5024-3 series are not applicable to these products.
*3 The cables with a model name that ends with "-PF", "-PF-EL9", "-ME7", or "-EL2" are not included.
CCS High-Resolution Telecentric Lenses
SE-65-M series / SE-110-M series
5-megapixel camera-compatible models available
2/3L Inches (5.98 mm vertical x 11.26mm horizontal) 5.5μm/PIX, Compatible models: SE-110VT03-5M/SE-110ST03-5M
Ideal for combining with megapixel cameras
Approx. 4.65μm/PIX min.
WD65mm and WD110mm
Coaxial epi-illumination type and straight type

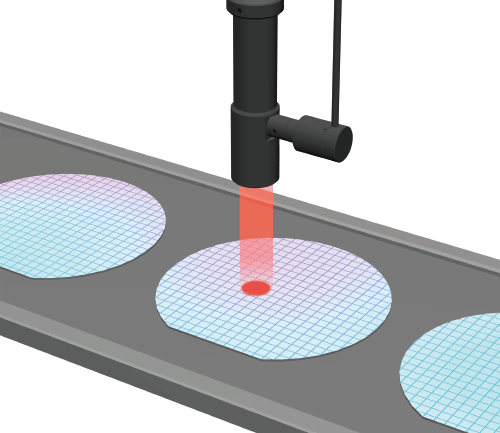

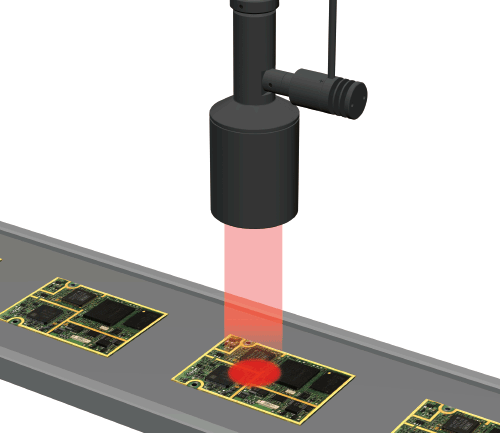

Use with HLV3 Series Cylindrical Type Series to create a stable imaging environment.
Optical magnification 0.3x〜6.0x
For optical magnification of 0.3x to 0.8x, the recommended illumination is HLV3-22-4M.
