HLV3-22-4-NR Series
Micro Fiber Head (HFS/HFR series) Dedicated Light Sources.
Provides high output spot lighting using an original optical design.
Download Pamphlet PDF

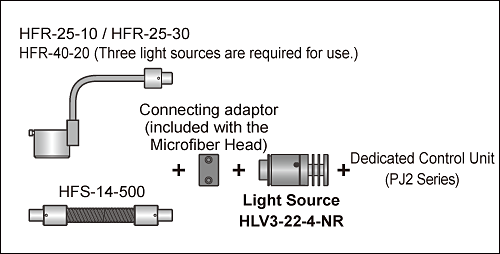

Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.
特点

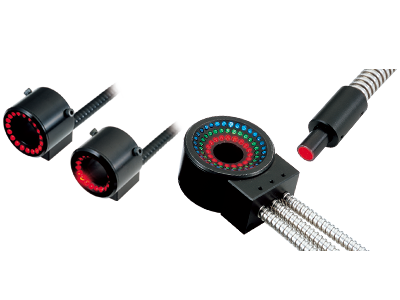

The micro fiber head dedicated light source allows for easy installation and removal. Select the perfect emitted color for workpiece imaging to achieve accurate characteristic extraction.
Usage example
Change Emission Color to Extract Characteristics for Your Purpose

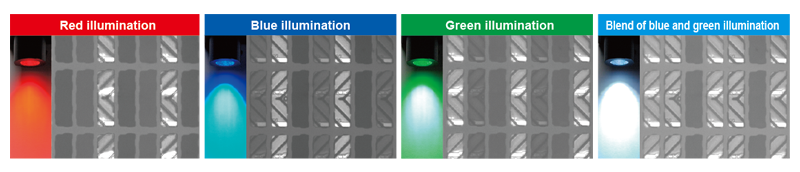

Example of imaging an LCD color filter

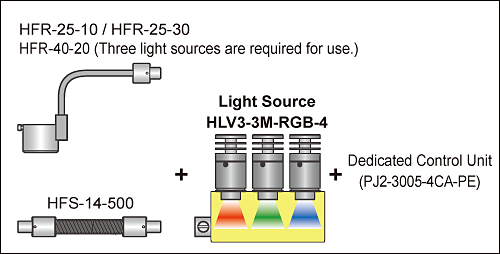

Use the HLV3-22-NR-4 series to achieve high-accuracy blended color illumination.
You can create the desired illumination color with independent intensity control of each light source to help improve inspection accuracy.
特殊定制例
We accept custom orders.
Please feel free to inquire.
- Shape modifications
- Brightness increases
- Changes in wavelength, etc.
