LFX3 Series
High brightness, light-weight compact design, and wide field of view.
Download Pamphlet PDF
特点
High output to match high-speed inspection
The LFX3-series Light Units are high-power Flat Dome Lights perfect for fast-moving production lines. The brightness of the white lights has been tripled.

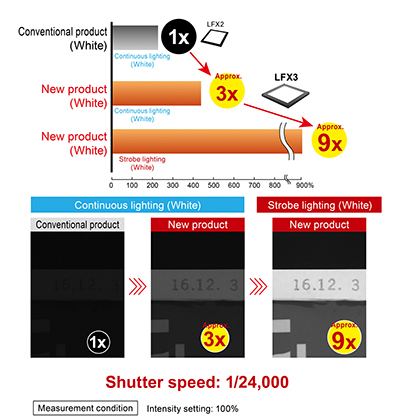

Brightness comparison between the LFX2-100SW and LFX3-100SW.
※The data included is for reference only. Results for individual products may vary.

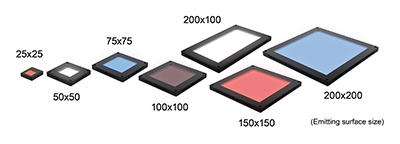

Expanded product lineup: 28 models in total
The Light Unit is available in 7 sizes and 4 LED colors: red, white, blue, and infrared.
series | Emitting surface size(mm) | LED color |
---|---|---|
LFX3-25 series | 25×25 | Red/White/Blue/IR |
LFX3-50 series | 50×50 | |
LFX3-75 series | 75×75 | |
LFX3-100 series | 100×100 | |
LFX3-150 series | 150×150 | |
LFX3-200X100 series | 200×100 | |
LFX3-200 series | 200×200 |
Designed to prevent falling screws
No worries of screws loosening and falling. Cover screws are not used on the light projection side of the Light Unit.
※The screws that are used to install the Light Unit are not considered.Installation using nut slots

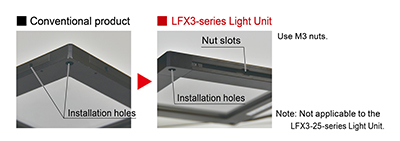

Nut Slots are provided on the sides of the Light Unit for a high degree of freedom in installation to match the environment.

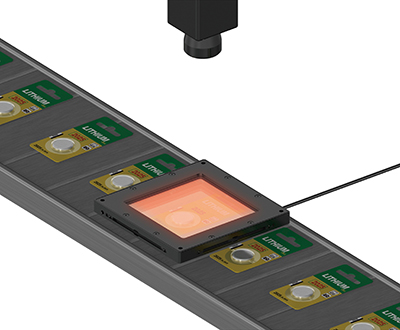

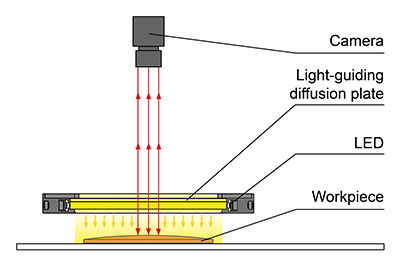

Example configuration

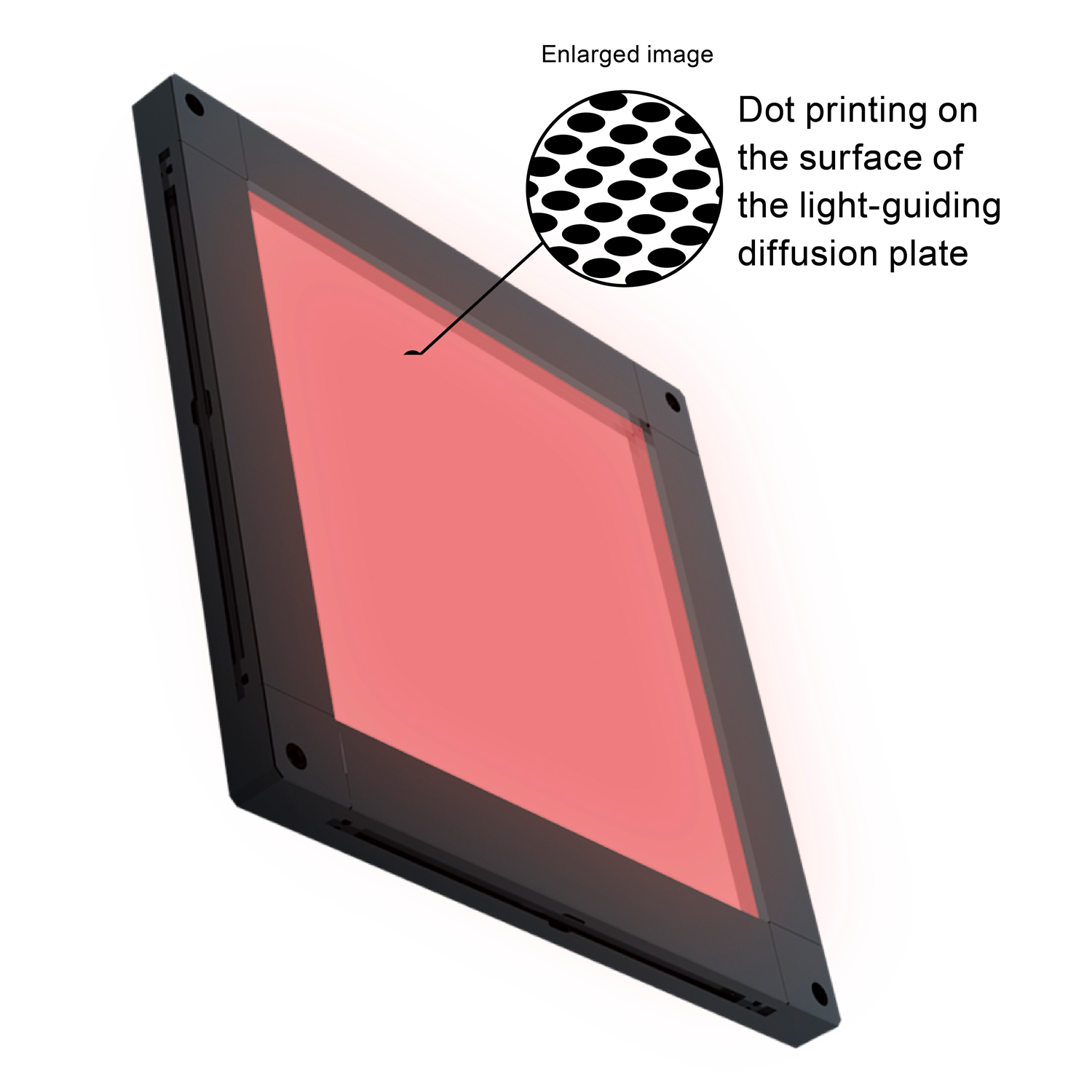

The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the illuminated light. This product can illuminate uniform diffused light onto the workpiece.
LFX3-100

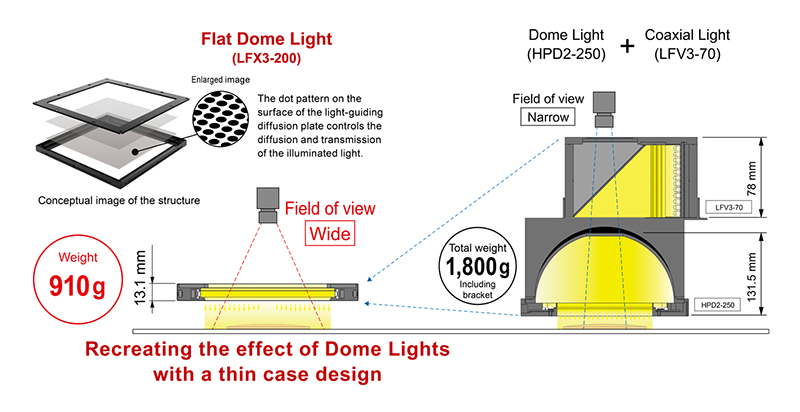

Light-weight compact design, space-saving installation, and wide field of view

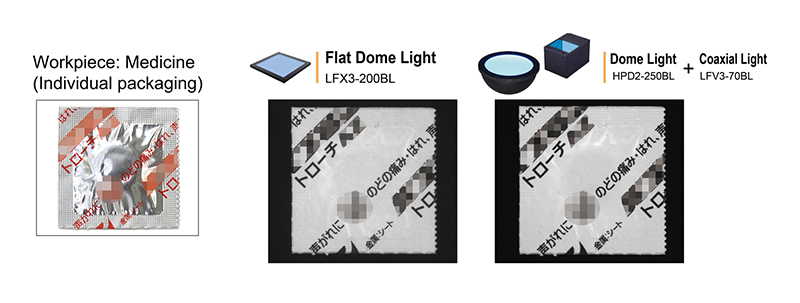

Comparison of images of printed text
Comparison of structures
How to use the LFX3 to capture a perfect image

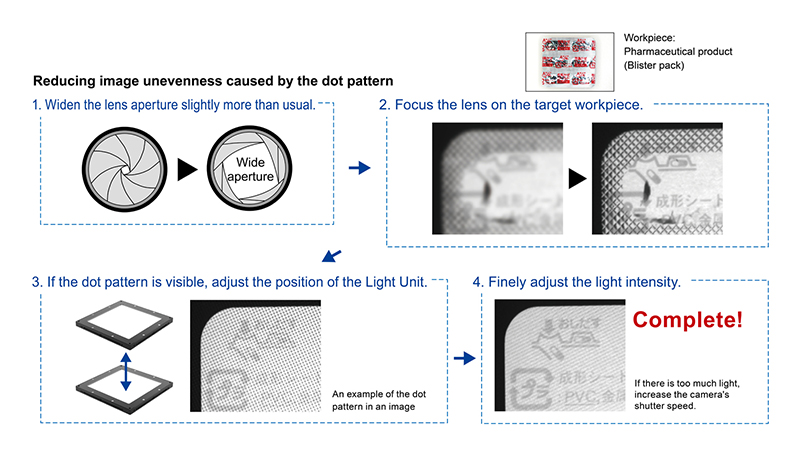

Uneven imaging may occur due to the dot pattern on the emitting surface
Ambient light may reflect off the Light Unit surface or workpiece surface, affecting the imaging
To prevent effects from ambient light:
- Equip a lens filter to the lens.
- Prevent ambient light from entering with a hood or cover.
- Increase the shutter speed, or slightly increase the light intensity.

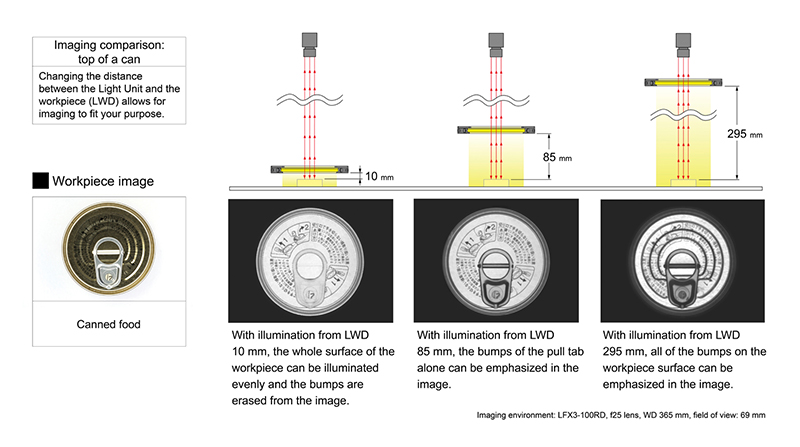

Supports a wide variety of applications from low angles to high angles
特性 ・数据

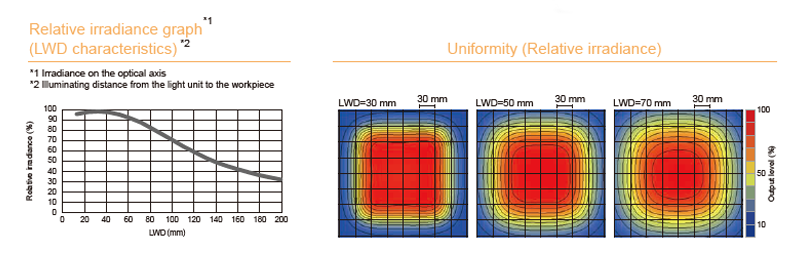

Data: Relative irradiance graph and uniformity (Representative example)
※The data included is for reference only. Actual values may vary.
LFX3-100SW
LED properties

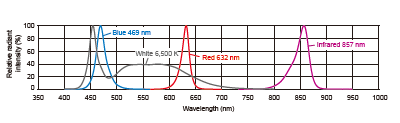

Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.
成像实例

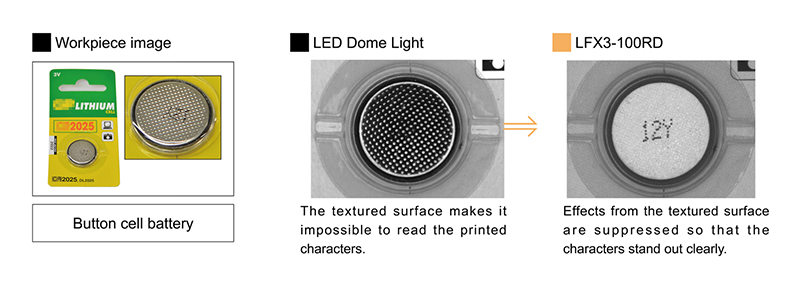

Imaging characters on button cell batteries

Description | Character recognition |
---|---|
Workpiece | Button cell battery |
Conventional lighting | LED Dome Light |
New lighting | LFX3-100RD |
Result | Emphasizes the characters |

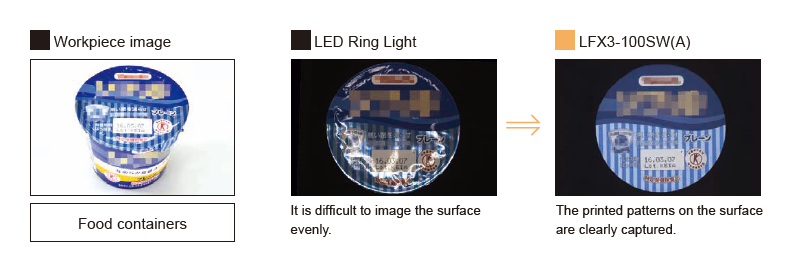

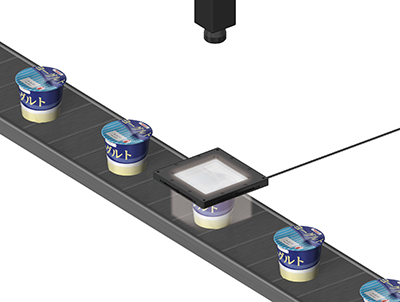

Imaging the external appearance of containers

Description | Visual inspection |
---|---|
Workpiece | Food (Yogurt container) |
Conventional lighting | LED Ring Light |
New lighting | LFX3-100SW |
Result | Improves the uniformity |

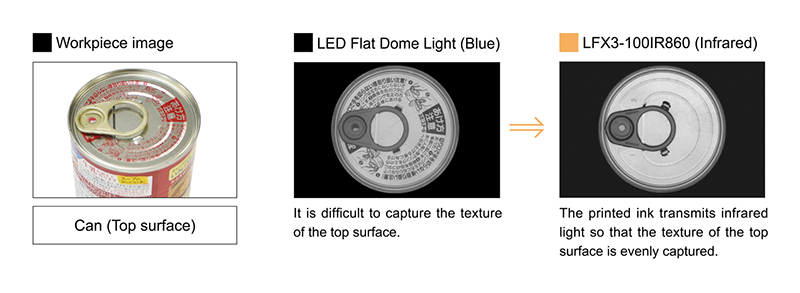

Imaging the external appearance of cans (top surface)
