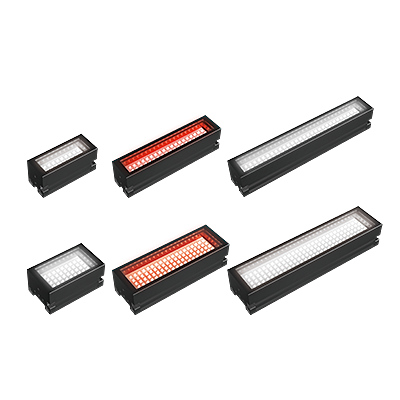

LDL-PF Series
High Power Strobe Lights PF Series.* Bar type.* Peak illuminance achieves 7 million lx.* Realizes high-speed and accurate inspection.
* Solves your xenon flash lamp problems.* Freely adjustable flash timing enables strobing within the exposure period of the camera.
Download Pamphlet PDF
Features of LDL-PF
Extreme power strobe lights
Extremely powerful strobe lighting improves productivity through increased inspection speed.
Image comparison: conventional product vs. PF series
Brightness comparable to xenon flash lamps
Achieves the same inspection speed as xenon lamps.
Advantages over xenon lamps
特性 ・数据

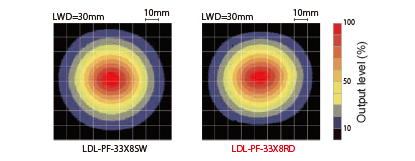

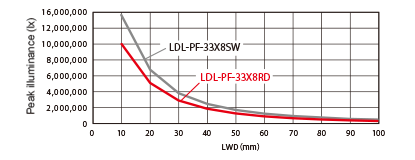

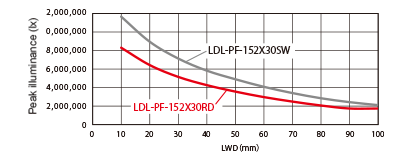

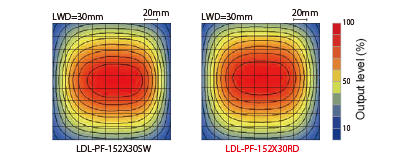

Relative irradiance graph and uniformity (Representative example)
LDL-PF-152X30
* The data included is for reference only. Actual values may vary.

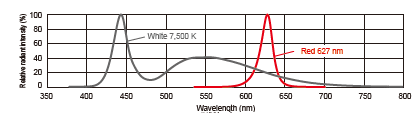

Light spectrum
The data included is for reference only. Actual values may vary.
成像实例

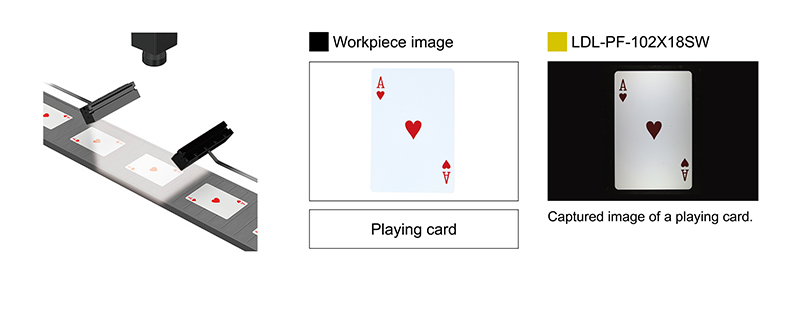

External imaging of playing card

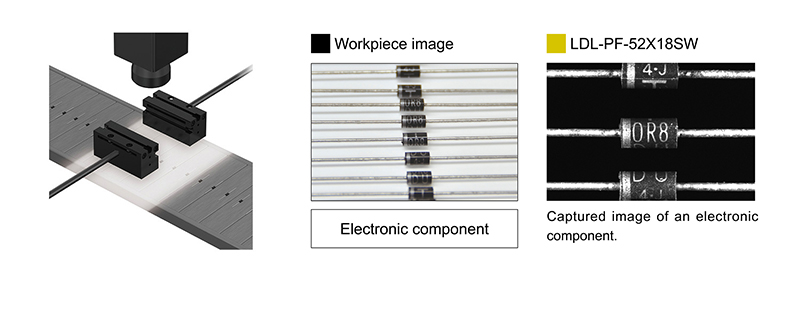

External imaging of electronic component

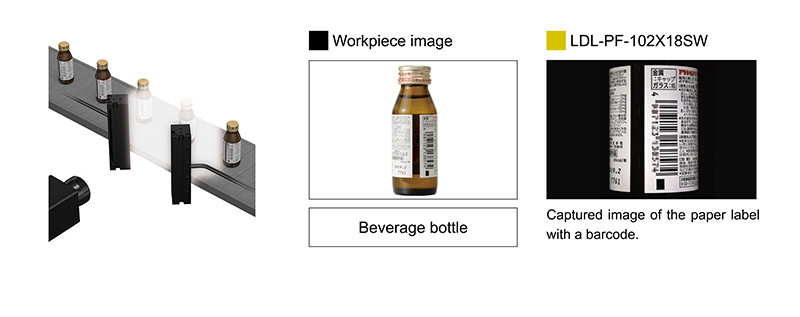

External imaging of paper label
Usage
Using the flash as a camera shutter
Eliminating image blur
Horizontal blur
Vertical blur
Freely adjustable flash timing
You can use the lighting delay time setting of the Control Unit to adjust the timing of the flash to be within the exposure period of the camera.
Product lineup of High Power Strobe Light Units
Covering a wide range of uses with various types of Lights.
专用电源
Maximize the performance of High Power Strobe Light Units
PF-A4048-2 (2 channels)

- Light intensity: 512 levels
- Strobe time: 1 to 100 μs
- Lighting delay: 0 to 100 μs (in steps of 0.1 μs)
- Compatible with Ethernet and parallel communications
- Selectable light intensity ranges, etc.
- Light intensity: 512 levels
- Strobe time: 1 to 100 μs
- Lighting delay: 0 to 100 μs (in steps of 0.1 μs)
- Compatible with Ethernet and parallel communications
- Selectable light intensity ranges, etc.
PF-A16048-4 (4 channels)

- Light intensity: 512 levels
- Strobe time: 1 to 500 μs
- Lighting delay: 0 to 100 μs (in steps of 0.1 μs)
- Compatible with Ethernet and parallel communications
- Selectable light intensity ranges
- Trigger link*, etc.
- Light intensity: 512 levels
- Strobe time: 1 to 500 μs
- Lighting delay: 0 to 100 μs (in steps of 0.1 μs)
- Compatible with Ethernet and parallel communications
- Selectable light intensity ranges
- Trigger link*, etc.
* You can make the Light Units on more than one channel flash linked to a trigger signal that is input through one of the pins in the trigger input connector.
