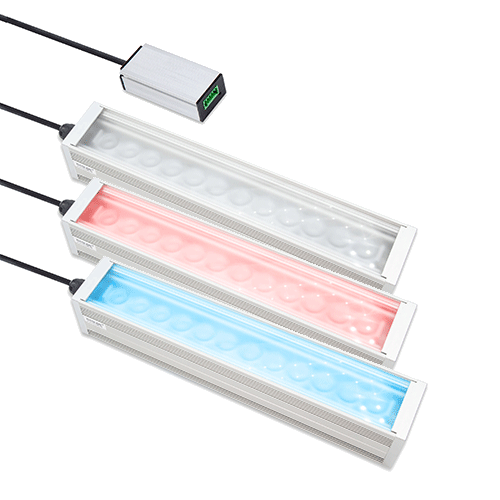

BCF Series (Flood Light)
BCF series brick lights connect to Basler ace U and ace L camera models by plug and play. Control lighting mode, lighting time, and dimming of lighting through the camera software.
Available in size 255 x 45 mm and 3 LED emission colors: red, blue, and white.
A transparent plate and polarizing plate are available as options.
Direct communication between camera and light thanks to the Basler SLP feature
- Basler SLP feature does not require complicated calculation or lighting setup. which is a bottleneck when building an image inspection system using a camera and lighting.
- Lighting control is possible with Basler's dedicated pylon Camera Software Suite.
- By sharing the power supply for cameras and lighting, it is possible to reduce the number of devices for system construction and reduce costs.
Abundant lighting lineup
- Four types of lighting: bar, ring, flat, and flood lights, available in red, white, and blue emission colors (27 models in total)
- Ideal for speedily building an image inspection system.

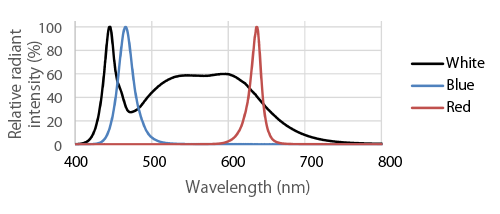

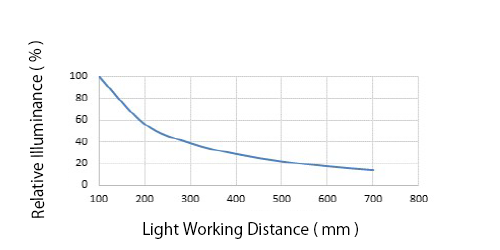

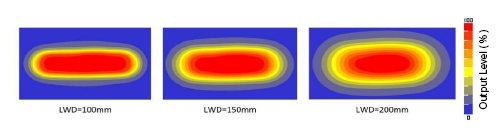

Reference model data: BCF-255X45W
Note: The data included is for reference only. Actual values may vary.
