SWIR / Hyperspectral Imaging Light
- Now available in Diffused Type LDL-222X42CIR-LACL
- Hyperspectral imaging illumination with a lineup of three types: high output irradiation type, line focusing type, and highly uniform diffusion type for different application needs.
- Proposed for a wide range of applications with wavelength characteristics from visible light to the near infrared region (near 2500 nm).
- The special halogen lamp achieves long life. (TH-200X30CIR / LN-200CIR)
- We can manufacture lighting of various shapes and sizes according to customer requirements.
- We can also propose SWIR cameras, infrared compatible lenses, and wavelength filters.

This is a made-to-order product. For queries and details, contact your CCS sales representative.
特点
Features
- Now available in Diffused Type LDL-222X42CIR-LACL.
- Hyperspectral imaging illumination with a lineup of three types: high output irradiation type, line focusing type, and highly uniform diffusion type for different application needs
- The special halogen lamp achieves long life. (TH-200X30CIR / LN-200CIR)
- Proposed for a wide range of applications with wavelength characteristics from visible light to the near infrared region (near 2500 nm)
- We can manufacture lighting of various shapes and sizes according to customer requirements
- We can also propose SWIR cameras, infrared compatible lenses, and wavelength filters
What is Hyperspectral Imaging Hyperspectral Imaging is a technology for acquiring images using a hyperspectral camera that has the function of acquiring images with high wavelength resolution and corresponding illumination. By imaging and visualizing the reflected light of the target object, it is possible to perform inspections that were difficult to achieve with ordinary cameras, such as component analysis, foreign material detection, and highly accurate color identification.

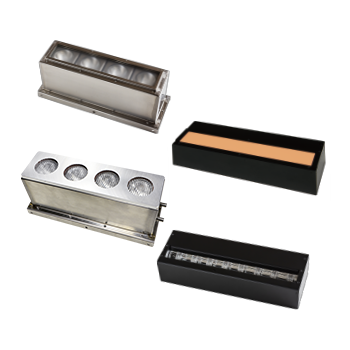

Lineup
- Hyperspectral Imaging Light
High intensity emission using convergent lamps.
Optimal for hyperspectral projects demanding high intensity, and for high speed SWIR applications. - Convergent Type

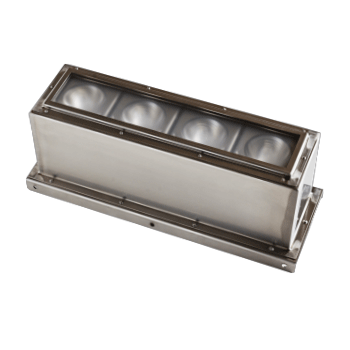

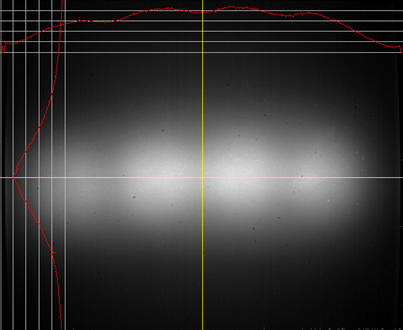

LDL-222X42CIR- Irradiation image
- Diffused Type

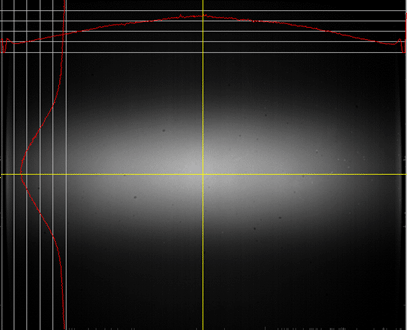

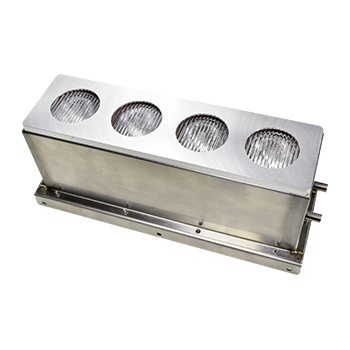

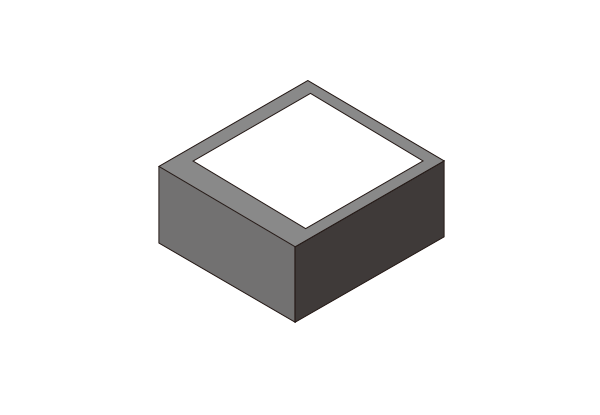

LDL-222X42CIR-LACL- Irradiation image

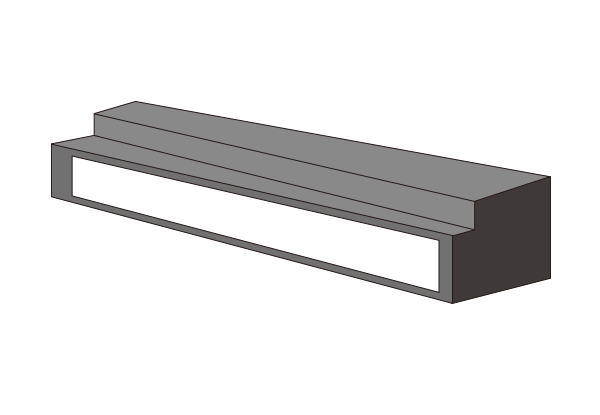

- Diffused SWIR Light

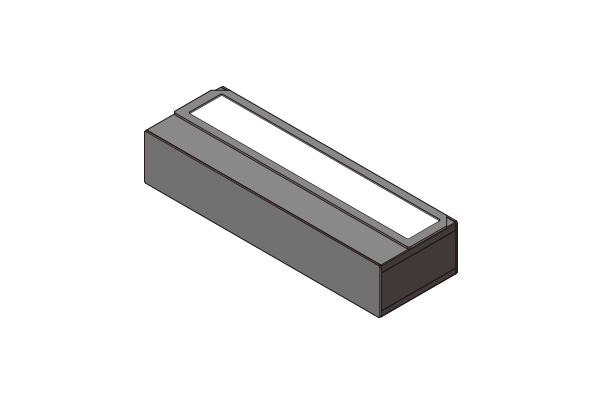

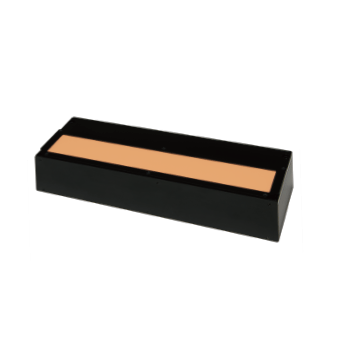

TH-200X30CIR
SWIR light with special diffuser for high uniformity.
Wide emission, penetrates objects for optimal image. - Convergent SWIR Light

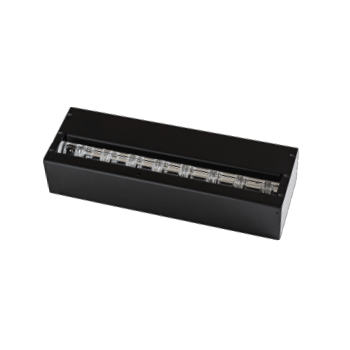

LN-200CIR
Converged emission using special lens.
Optimal for SWIR line scan inspections.
Inspection item example
- Component analysis using a hyperspectral camera, foreign matter detection, and highly accurate color identification
- Foreign matter inspection
- Defect inspection
- Missing goods inspection
- Inspection of contained substances
- Quality inspection, etc.
Customize
- Size customizable. Please contact your local CCS sales representative.
Data

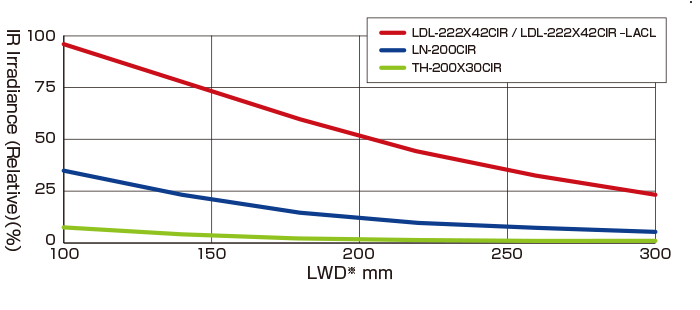

IR irradiance graph
Note: The posted data is for reference only. It does not guarantee the quality of the product.
Note: Average irradiance for LDL-222X42CIR
* Distance between workpiece and light unit. Data only for reference purposes only.

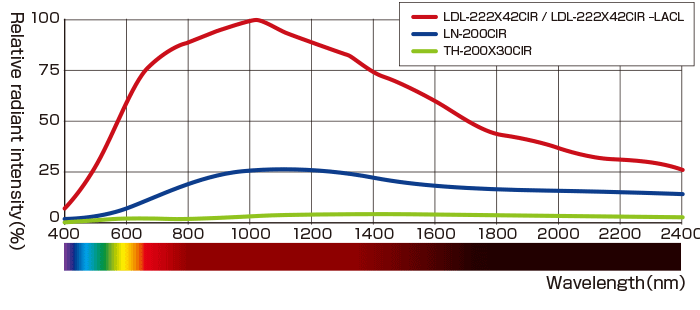

Spectral Distribution
Note: Average irradiance for LDL-222X42CIR
Imaging Example
Imaging example using hyperspectral camera and high-power illumination

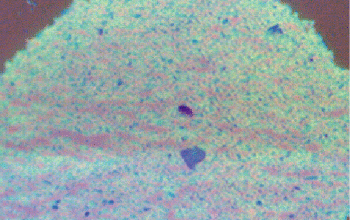

Contamination inside powdered coffee at 400nm~900nm
( Hyperspectral Imaging Light LDL-222X42CIR)
- Visible LED Light
- Hyperspectral Light
Imaging example using SWIR camera and high diffused illumination

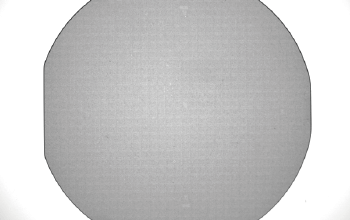

Wafer inspection with 1200nm backlight
( Diffused SWIR Light TH-200X30CIR)
- Visible LED Light
- Hyperspectral Light
Imaging example using SWIR camera and high power illumination

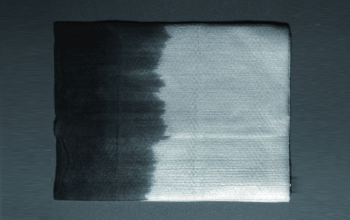

Moisture has a high absorption rate in the infrared region around 1450nm, so the infrared light is absorbed in the area where the moisture is present, and therefore appears black in the image.

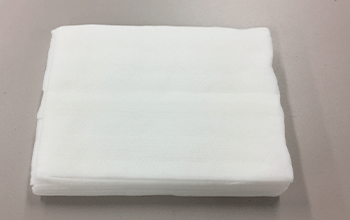

Wet Sponge at 1450nm
( Hyperspectral Imaging Light LDL-222X42CIR)
- Visible Light
- Hyperspectral Light

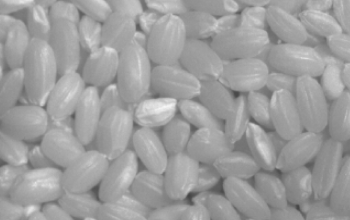

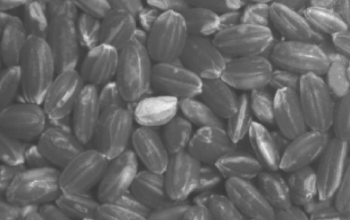

Inspecting fluid levels for rice at 1450nm
( Convergent SWIR Light LN-200CIR)
- Visible LED Light
- Hyperspectral Light
选件
Option Cable : FCB-2-NC6HR10

Band-pass Filters : F-BP Series

We offer lens filters that transmit light in a specific wavelength range,
including bandpass filters for wavelengths of 1000 nm or more.
Please contact your sales representative for details.
Contact us
We will be happy to assist you with your request. Please feel free to contact us and we will get back to you as soon as possible.
