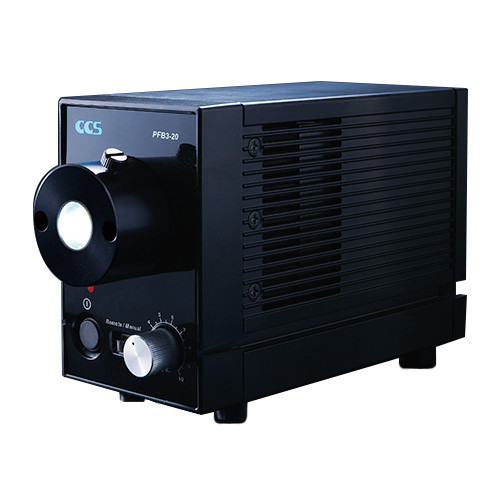

PFB3(A) Series
Provides light output that exceeds that of a 100 W halogen light source.
Advantages of replacing halogen light sources are:
1. Power consumption of 18 W greatly reduces running costs.
2. Long lifetime of 25,000 hours* to greatly reduce maintenance man-hours.
3. The compact design saves space.
4. Ambient temperatures around equipment are greatly reduced by the use of LEDs.
* Lifetime depends on application environment.
特点
Renewed with Increased Brightness
Achieved high output up to 1.2x that of the conventional PFB2 series.*
Illuminance comparison with a 100-W halogen lamp
* Actual measurement values with light intensity of 100%, using a straight light guide of Φ8 mm diameter at 50 mm LWD away from the fiber end. The data included is for reference only and the results for individual products may vary.
Select a Power Supply to Match Your Actual Environment

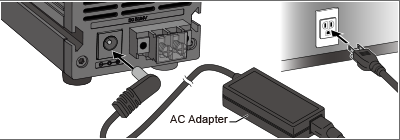

The terminal block on the unit rear supports 24 VDC input. With an optional AC adapter, it can also support 100 to 240 VAC input. You can make a selection to match your actual environment.
DC supply
AC supply
Model name: ADP2460-PFB-JTLV6
(U.S. DoE CEC Level VI External Power Supply Efficiency Standards compliant)
Supports Major Light Guide Manufacturers
Supports major light guide manufacturers (5 Japanese companies, 6 international companies).
Please refer to the "Light Guide Adapter Dimensions Chart" tab.
Selectable External Control
The lineup includes a model where intensity can only be manually adjusted, and models that allow for external control. There are three types of external control: serial, parallel, and analog. ON/OFF control and intensity control are possible by each control type.
Standard type
PFB3-20SW-JT(A)
Serial type
PFB3-20SW-SJT(A)External control connector
D-sub 9pin
Parallel type
PFB3-20SW-PJT(A)External control connector
D-sub 15pin
Analog type
PFB3-20SW-AJT(A)External control connector
D-sub 15pin
Light Guide Adapter Dimensions Chart
Supports Major Light Guide Manufacturers
Supports major light guide manufacturers (5 Japanese companies, 6 international companies).
Light Guide Adapter Dimensions Chart (mm)
Model name | Dimensions (mm) |
---|---|
PFB3-20SW-□□□-MO(A)* |
![]() |

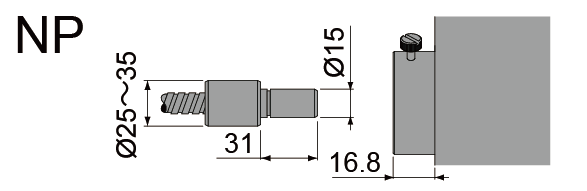

PFB3-20SW-□□□-NP(A)* |
![]() |

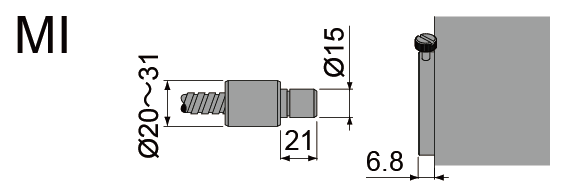

PFB3-20SW-□□□-MI(A)* |
![]() |

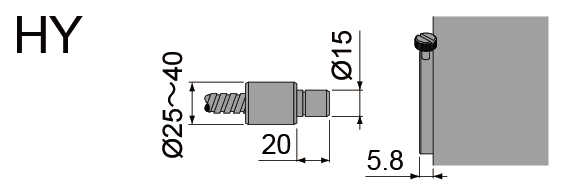

PFB3-20SW-□□□-HY(A)* |
![]() |

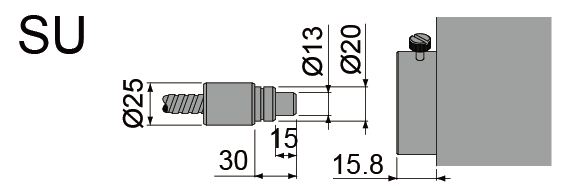

PFB3-20SW-□□□-SU(A)* |
![]() |

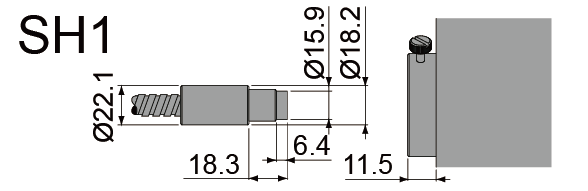

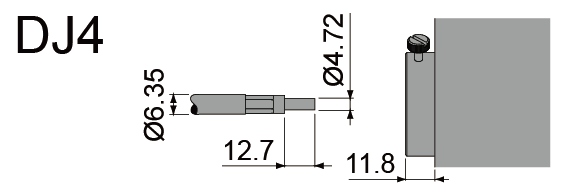

PFB3-20SW-□□□-SH1(A)* |
![]() |

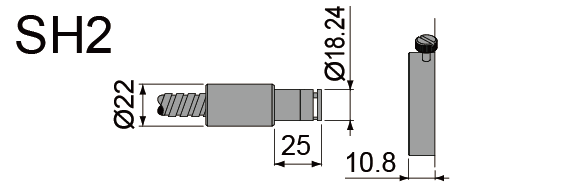

PFB3-20SW-□□□-SH2(A)* |
![]() |

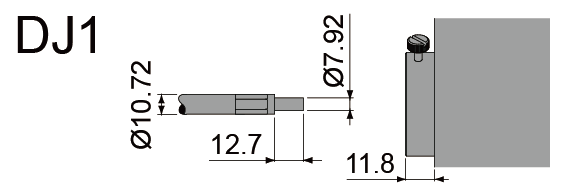

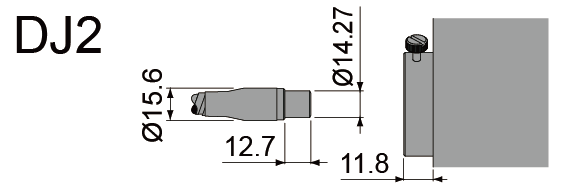

PFB3-20SW-□□□-DJ1(A)* |
![]() |
PFB3-20SW-□□□-DJ2(A)* |
![]() |

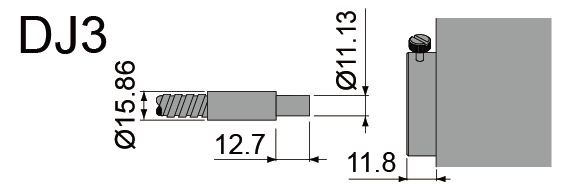

PFB3-20SW-□□□-DJ3(A)* |
![]() |
PFB3-20SW-□□□-DJ4(A)* |
![]() |

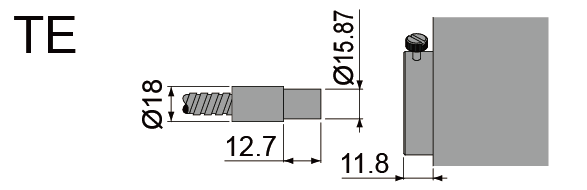

PFB3-20SW-□□□-TE(A)* |
![]() |

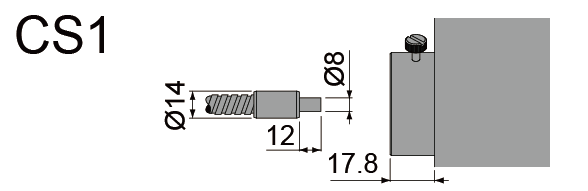

PFB3-20SW-□□□-CS1(A)* |
![]() Only for use with the CCS Micro Fiber Head HFS Series / HFR Series . |
* □□□ indicates the model name. (JT / SJT / AJT / PJT)
选件
AC adapter, External control cable
Model Change
The PFB3(A) Series has new compatible LEDs because the LEDs used in the original PFB3 Series were discontinued.
Impact on function and performance
There are slight differences in irradiance, power consumption and directional characteristics.
Please contact your local sales for more information.
Applicable Model
All PFB3(A) models
