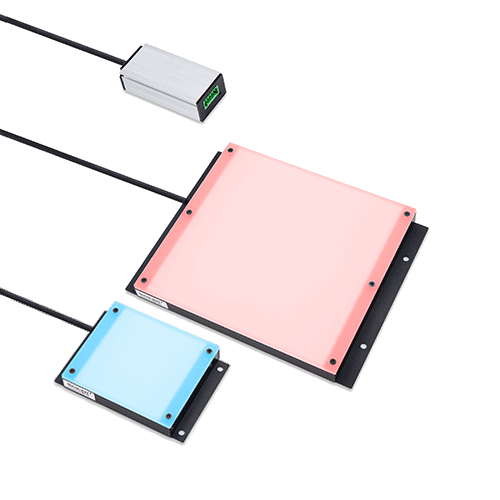

BCBL Series (Flat Light)
BCBL series flat lights connect to Basler ace U and ace L camera models by plug and play. Control lighting mode, lighting time, and dimming of lighting through the camera software.
Available in 2 sizes: 60 x 60 mm and 120 x 120 mm, and 3 LED light emitting colors: red, blue and white.
Diffuser and polarizing plate are available as options.
Direct communication between camera and light thanks to the Basler SLP feature
- Basler SLP feature does not require complicated calculation or lighting setup. which is a bottleneck when building an image inspection system using a camera and lighting.
- Lighting control is possible with Basler's dedicated pylon Camera Software Suite.
- By sharing the power supply for cameras and lighting, it is possible to reduce the number of devices for system construction and reduce costs.
Abundant lighting lineup
- Four types of lighting: bar, ring, flat, and flood lights, available in red, white, and blue emission colors (27 models in total)
- Ideal for speedily building an image inspection system.

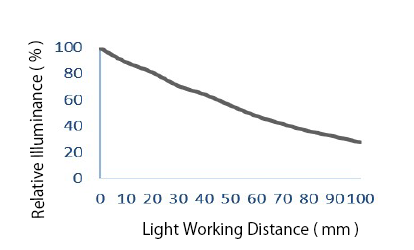

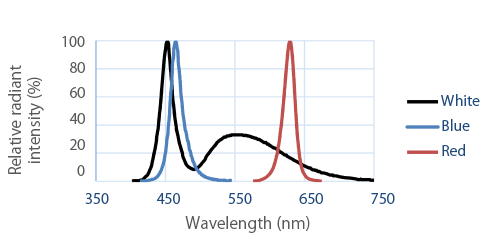

Reference model data: BCBL-120X120W
Note: The data included is for reference only. Actual values may vary.
Imaging of the level of liquid inside a plastic container
|Description||Liquid volume inspection|
|Conventional lighting||LED Ring Light|
|New lighting||LED Flat Light|
|Result||Emphasizes the level of the liquid|
It is difficult to form an image of the liquid level due to surface reflection.
It is possible to form an image of the liquid level without surface reflection.
