OLB-LT-100SW-OS

OLB-LT Series organic LED lights outer surface emission type OLB-LT-100SW-OS
Bending radius: 100mm*, light emitting surface 74 mm x 30 mm,
* Bending radius can be freely designed upon request

Warranty for this product are not the same as CCS standard lighting. Contact our local sales office for details.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales office for details.

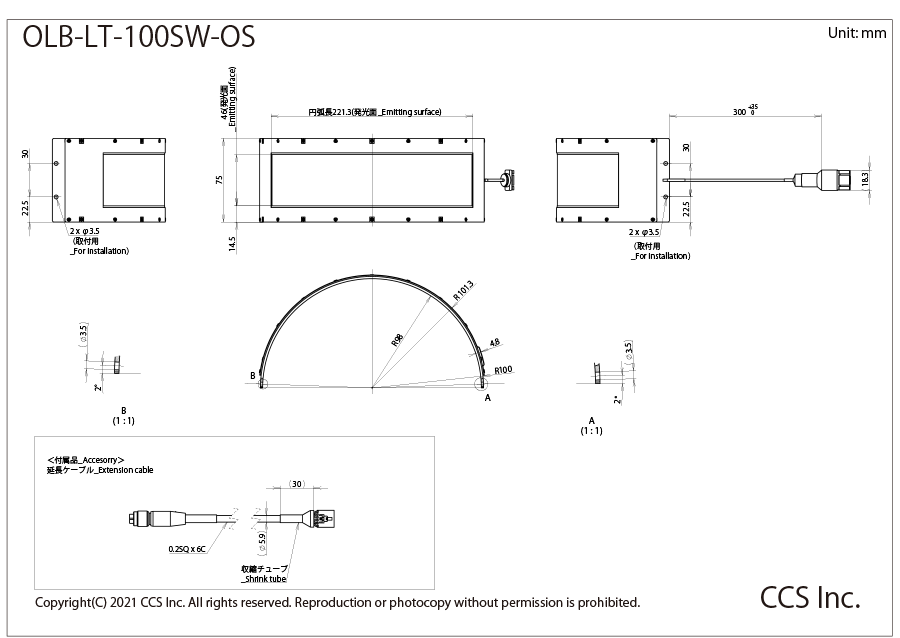

外形尺寸图(mm)

* Click to enlarge image.

选件

OC Series (OLF-LT / OLB-LT dedicated controller)

Dedicated controller with predictive maintenance function (lifetime prediction)
A predictive maintenance function is provided by automatically recognizing connected lighting and accumulating data on lighting usage.
* When using a light unit at the maximum brightness specified, use the OC-G-5646-2-ET power supply.

OC-0736-1-ET

OC-0736-1-ET

OC-0736-1-ET

OC-G-5646-2-ET

OC-G-5646-2-ET

OC-G-5646-2-ET

OLCB Series (OLF-LT / OLB-LT dedicated extension cable)

Model name OLCB-2 OLCB-3 OLCB-5
Cable length 2 m 3 m 5 m
Weight 127 g max. 182 g max. 292 g max.

OLCB-2

OLCB-3

OLCB-5

*A 1 m cable is supplied with this light.

Rental demo kit

Rental demo kit that allows you to try bending radii according to the installation environment

Rental demo kit that allows you to try bending radii according to the installation environment

A demo kit is available for you to choose from 2 types of light emission, i.e. inner surface emission and outer surface emission, and also 6 bending radii.
You can apply for the rental demo kit via your sales representative

*Image of housing for inner surface emission. Outer surface emission is also available with 6 types of bending radii.
