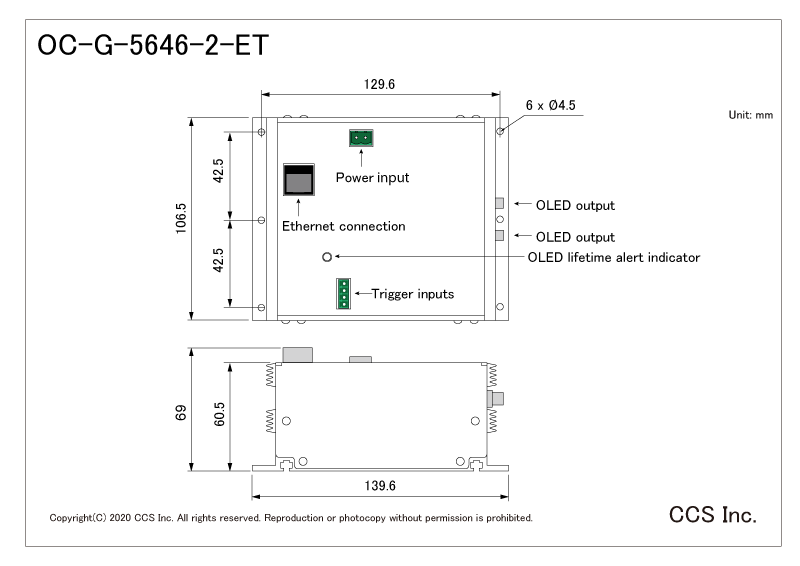

OC-G-5646-2-ET
Dedicated controller for OLF-LT / OLB-LT Series(Organic LED Lights for Machine Vision)

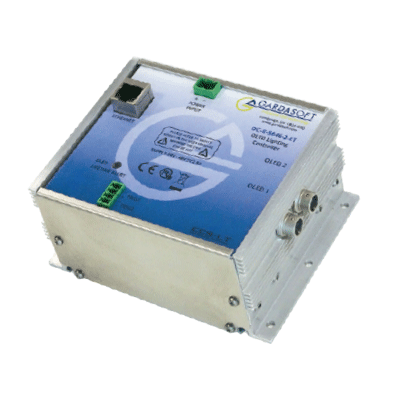

This product is a controller made by Gardasoft.
- A predictive maintenance function is provided by automatically recognizing connected lighting and accumulating data on lighting usage.
- 24 VDC Input
- Equipped with 2 channels
- Regular Emission, ON/OFF Emission,
Strobe Emission (With Overdrive Mode) - Configuration via Ethernet
- Strobe Light Emission Time Setting: 10 µs to 10 ms (1 µs units)
- Light Emission Delay Time Setting: 2 µs to 10 ms (1 µs units)
- Weight: 550 g max.
