BCF-255X45W / BCF-255X45R / BCF-255X45B

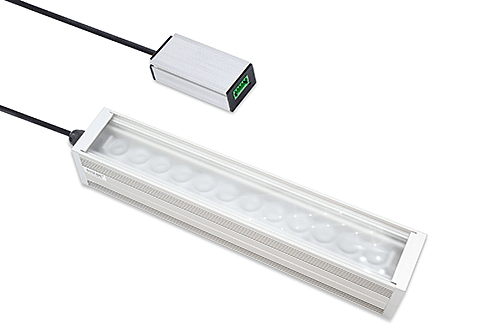

BCF-255X45x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models. Control lighting mode, lighting time, and dimming of lighting through the camera software.
The LED emission colors are red, blue and white, and the emission surface size is 255 x 45 mm.
Diffuser DF-TR-BCF-255X45 and Transparent Plate PL-BCF-255X45 are available as options.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

Controller Details

Connectors Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006
Drive method Constant-voltage system
Intensity control method PWM control
PWM frequency 100 kHz
Cable length Light cable: 500 mm Camera cable: 3 m max.
CE marking EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011
Case material Aluminum alloy, Resin

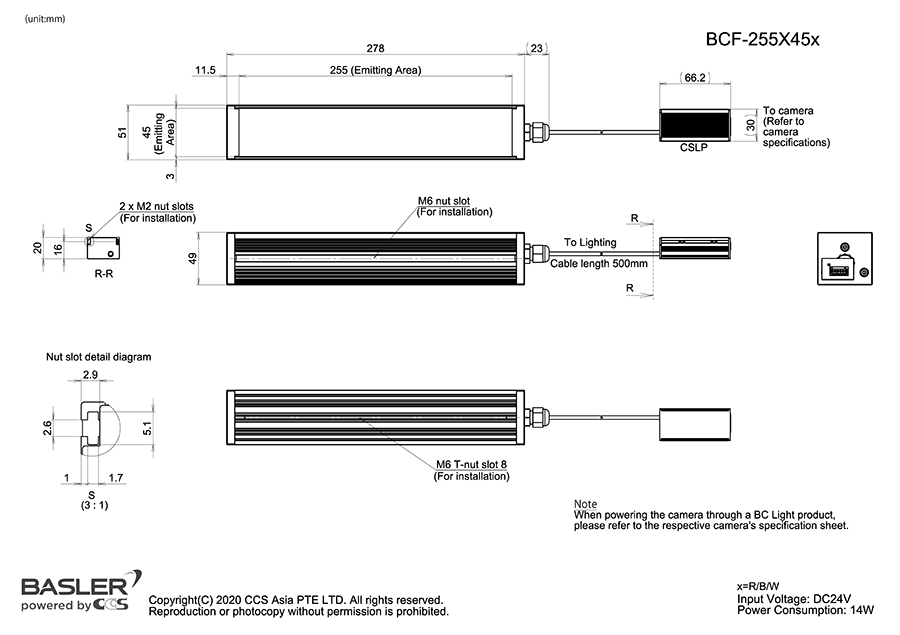

外形尺寸图(mm)

* Click to enlarge image.

选件

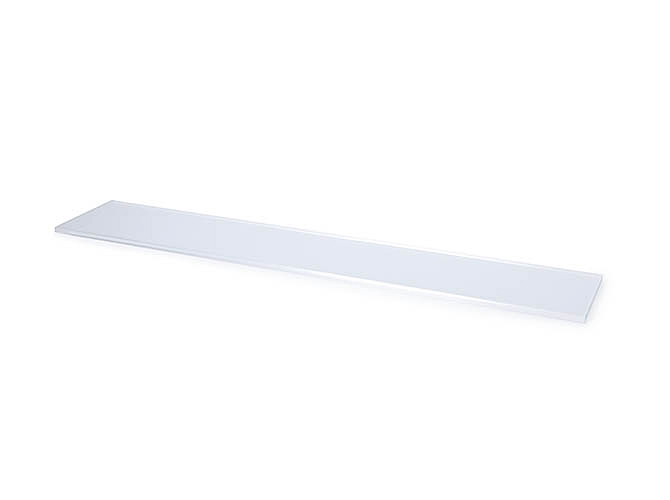

  • DF-TR-BCF-255X45

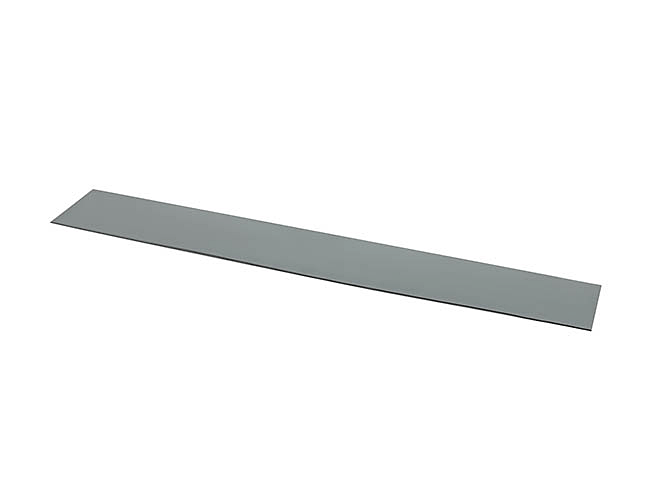

  • PL-BCF-255X45

  • BC-CBL-3

资料下载

PDF图纸 DXF图纸 使用说明书 STEP Drawing
