PFBR-600SW-LLCF-XF

  • 特殊定制品
  • 生产终止品

Not available from Mar/11/2022".
The recommended alternative model is PFBR-600SW2-LLCF-XF.

For Replacing Xenon Light Sources(PFBR-600 Made-to-order products).PFBR-600SW-LL-XF
Filter Changer Model.

This is a made-to-order product. For queries and details, contact your CCS sales representative. This is a made-to-order product. For queries and details, contact your CCS sales representative.

产品详细信息

发光颜色 White
相关色温 5600 K typ.
外观尺寸 W 175 mm x D 270 mm x H 215 mm
适用光纤束直径 φ8 to φ14 mm
发光角度 Total angle of 30°
通道数 1 channel
驱动方式 定电流方式
调光方式 可变电流控制
输入电流 100 to 240 VAC (±10%), 50/60 Hz
消耗功率 350 VA at 100 V input, 370 VA at 240 V input
涌入电流(typ) 40 A from a cold start
对地泄漏电流 0.5 mA max. (240 VAC, 60 Hz, with 100% load)
绝缘耐压・绝缘电阻(输入-输出，输入-FG) AC1,500 V 1 分钟　截断电流 10 mA DC500 V　20 MΩ 以上
适合规格 CE, UKCA, RoHS, IEC 62471 (High risk)
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 80%RH (with no condensation)
Altitude: 2,000 m max., AC overvoltage: Category II, Pollution degree: 2
(indoors only)
保存温湿度 Temperature: -15 to 60°C, Humidity: 20 to 85%RH (with no condensation)
冷却方式 强制冷却
重量 8,500 g max.
材质,涂装,表面处理 铝合金（黑色阳极氧化铝）
附属品 Instruction guide, 2-m 3-prong AC power cable with ground terminal,
Filter holders x 5, holder mounting screws x 18
Program 【Sample Program】
Sample programs are available. See the 软件工具 tab.

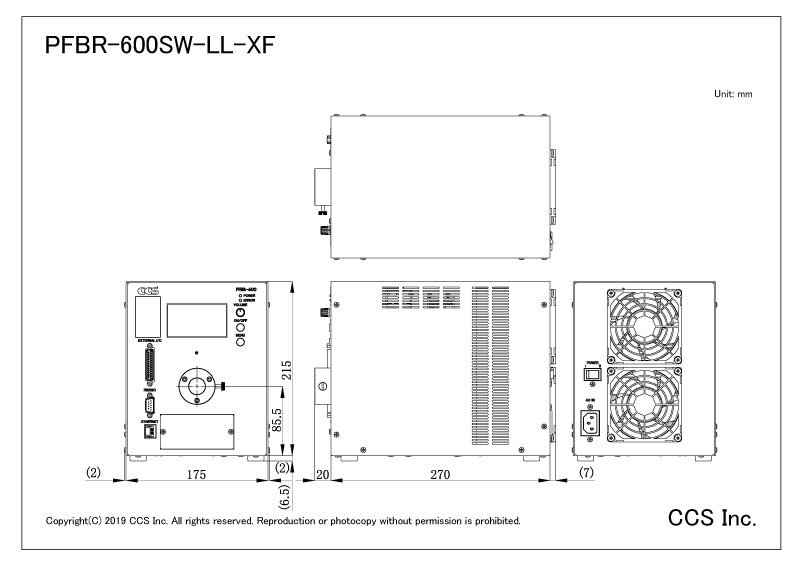

外形尺寸图(mm)

* Click to enlarge image.

滤镜转换器

Filter Changer Model

Use color filters to emit light at specific wavelengths.

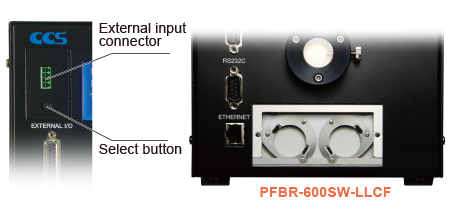

PFBR-600SW-LLCF Filter Changer Model

  • Equipped with a multi-filter changer that holds five filters.
  • Filters can be changed manually and using external communication.
  • Easily replace filters by removing the front cover.

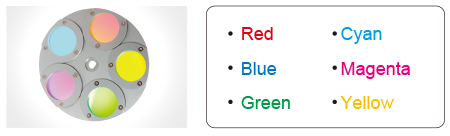

  • Filters available in six colors.

Filters available in six colors.

* Refer to the instruction guide for installing and setting filters.

A variety of filters are available with excellent heat resistance.

软件工具

  • シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

线缆

  • EXCB2-25M-3

选件

  • AD-PFBR-600-01

  • AD-PFBR-600-02

  • AD-PFBR-600-03

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 3D-CAD
