LC-TH-63X60-HO

  • 标准品

For the TH/TH2-63X60-series Coaxial Lights.
Square type Light Control Film.
Improves parallerism of light and prevents wrapping around of light in the appearance inspection of workpieces when mounted on the Light Unit.
This enables sharp imaging of profiles.

HO: The direction of louvers is horizontal when attaching with the cable outlet facing downwards.
VE: The direction of louvers is vertical when attaching with the cable outlet facing downwards.
One side is glossy and the other side is matte.
When you would like to reduce the glare, please put the matte side on the surface.

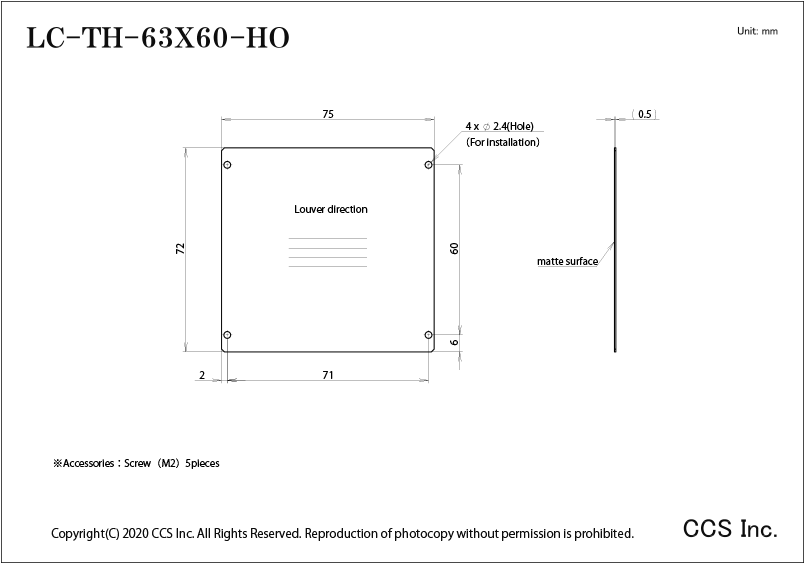

外形尺寸图(mm)

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 STEP Drawing
