FA-10

  • 标准品

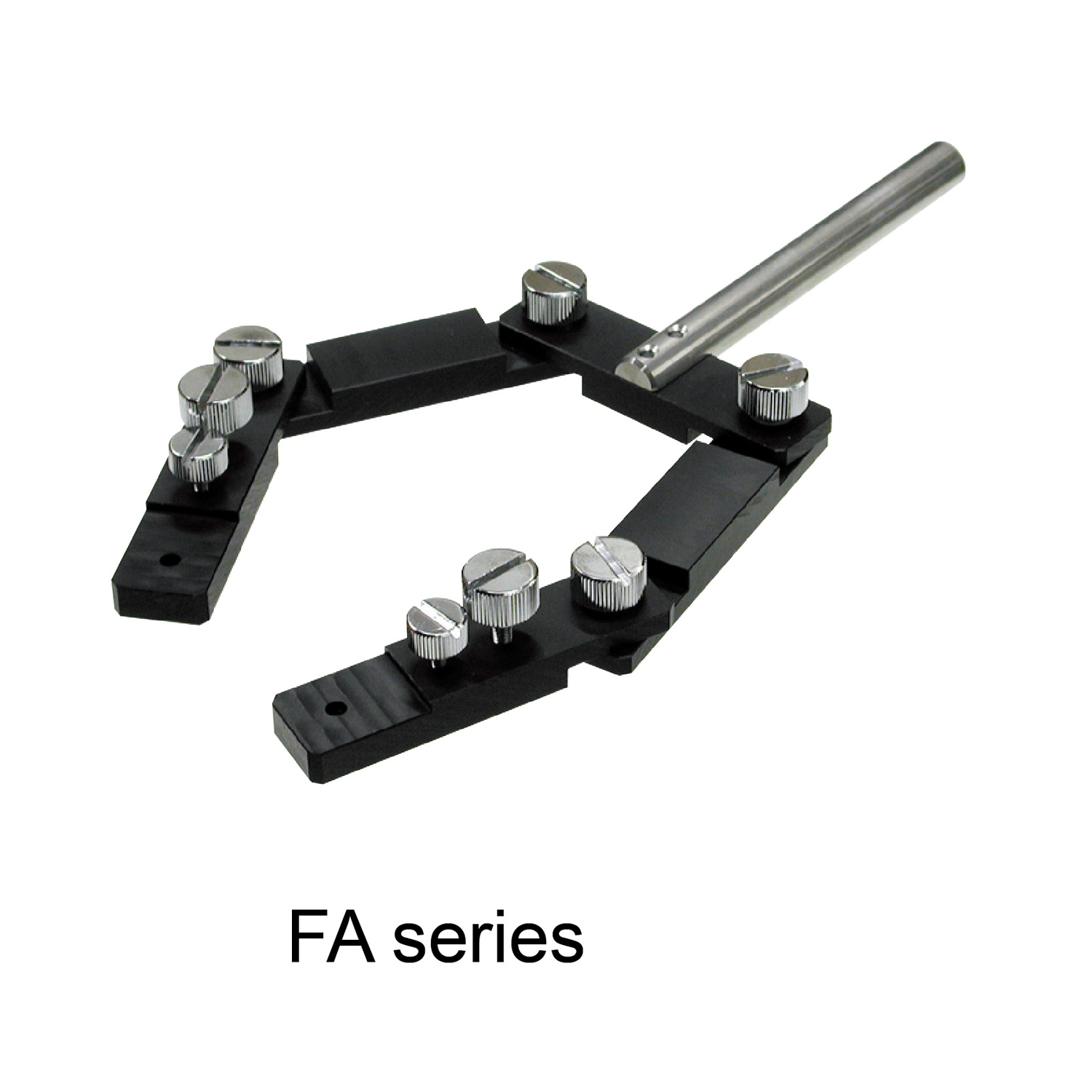

Mounting jig optimal for workpiece testing and temporary setting.
The main mounting rod has a diameter of φ10 mm.
Two sizes of screws (M3 and M4) are provided as standard features for securing the Light Unit.

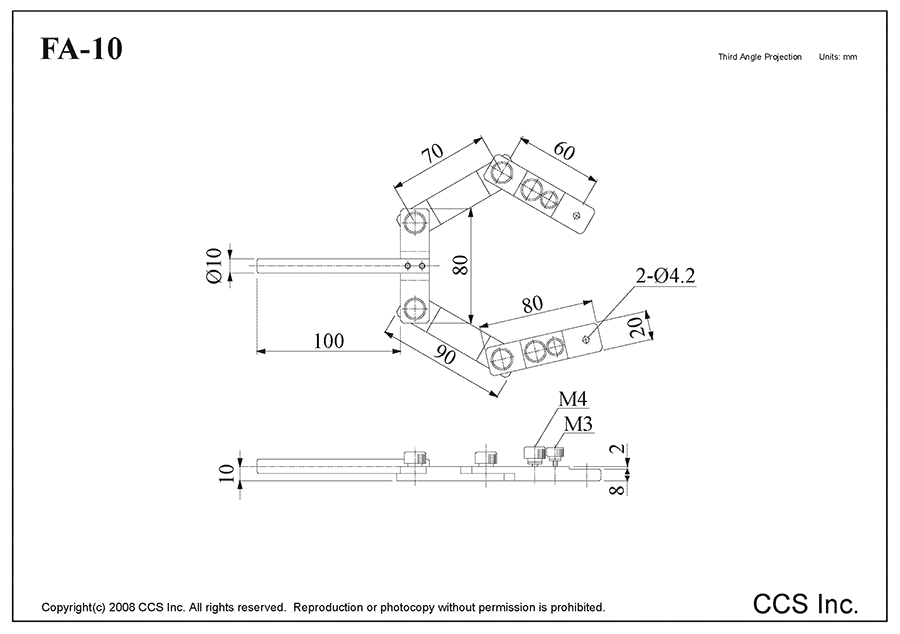

外形尺寸图(mm)

※クリックすると画像が拡大します。

资料下载

综合目录(摘录) PDF图纸 DXF图纸 3D-CAD
