PD4-12024-4-P

标准品

The PD4-12024-4-P digital control unit can connect 24V input LED lighting with a total power consumption of up to 120W.
This Control Unit operates on a AC100-240V. External control protocol is Parallel communication type.
Measures 190mm x 95mm x 106mm (width x depth x height).

AC power cable will be included in the standard model.
AC power cable will not be included in the model with "-NC" at the end.
The product with the model name with "-NC" at the end conforms to the KC standards.
For Korean and European customers, please select model name with "-NC" at the end.

PD4-12024-4-P-NC

登录到我的页面-已选产品列表

外观尺寸	W 190 mm x D 95 mm x H 106 mm
适合光源(输出定额)	24V DC Light Units, total for all connectors: 120 W max. (ELR-02V: 120 W max. per connector, SMP-03V-BC: 60 W max. per connector)
通道数	4 channels
发光方式	Strobe lighting, continuous lighting (no overdrive)
驱动方式	Constant lighting
调光方式	PWM control
PWN频率	125 kHz
输入电压	100 to 240 VAC (+10% -10%)
频率	50/60 Hz
消耗功率	170 VA
输出电压	24VDC
输出电流	SM connector: 60 W / channel EL connector: 120 W / channel Channel Total: 120 W
涌入电流(typ)	14 A (at 100 VAC), 34 A (at 240 VAC) from a cold start *When selecting a circuit breaker, refer to this value and select the product that has the trip characteristics suitable for use with switched mode power supplies. For information on the applicable trip characteristics, refer to the switched mode power supply manufacturer websites, etc.
外部控制协议	Parallel
错误检测显示	Panel surface Error lamp (red) and LCD screen display
错误检测输出	(1) Reflection in error status (USB) (2) Parallel port output (parallel) Normal: non-conducting When error detected: conducting
过电流保护	Operates at 109% or more of the output current (per channel) Recovery by power-on, panel setting knob, or error cancellation command via USB communication
过电压保护	Category II
外部控制输入	Logic switching (supports both NPN and PNP), pin assignment change
输出端口	ELR-02V x 2, SMP-03V-BC x 2 SM/EL connectors on the same channel have the same intensity setting
外部控制端口	[Trigger input/output] Terminal block connector SL 3.50/10/180F 3.2SN OR BX (Weidmuller) 10 poles 1 to 4: input, 5: input common, 6 to 9: output, 10: output common Function allocation can be changed and checked from USB [Parallel input/output] FX2B-40PA-1.27DSA(71) (Hirose Electric) 40 poles A1 to A19: Input, A20: Input common, B1 to B19: Output, B20: Output common Function allocation can be changed and checked from USB [USB] Mini-B
适合规格	[Compatible standards] CE, UKCA [Environmental regulations] RoHS, TSCA PBT, REACH
使用温湿度	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式	Natural air-cooling
重量	1.5 kg max.
材质,涂装,表面处理	Steel sheet, cover thickness: 1.6 mm, chassis thickness: 1.0 mm, black (leather satin)
附属品	Hardware manual x 1 Power Terminal Block Cover x 1 M4 screws for the cover x 2 AC Power Cable (2m-long 3-prong) with ground terminal^1 x 1 Trigger Terminal Block^2 x 1 1 Model name of AC power cable: ACC-JIS-125-7-M4-2. AC power cable will not be included as an accessory for model names with "-NC". Please choose the NC model* for the product without AC power cable. *2 Wires for trigger are not included. Please prepare them separately. Applicable power wires: AWG 26 to 16 (0.13 to 1.31 mm²), length: within 3 m, bare end: 8 mm (Ferrule can be used)
备注	Equipped with ON/OFF physical switch

产品详细信息外形尺寸图(mm) 线缆资料下载

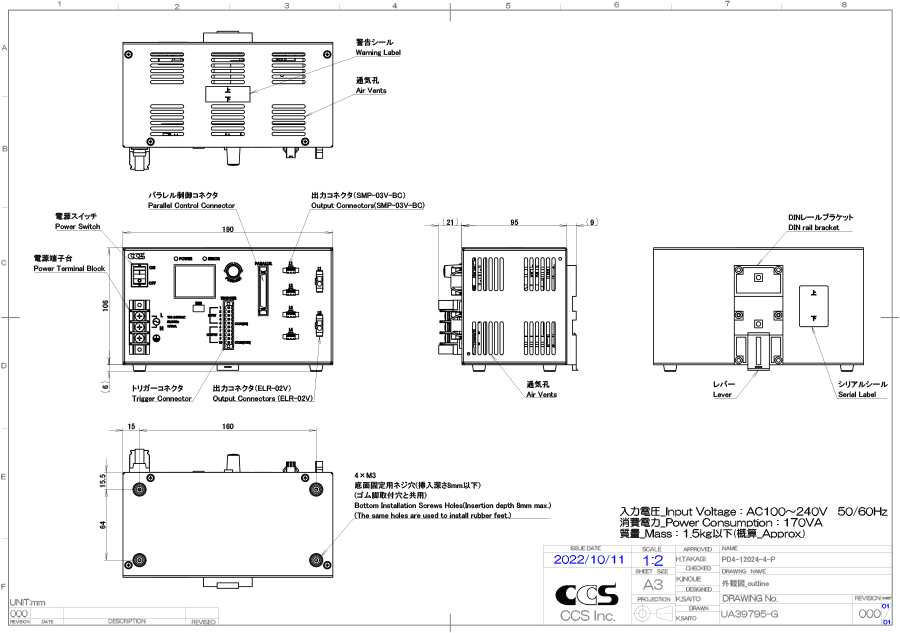

外形尺寸图(mm)

* Click to enlarge image.

线缆

ACC-JIS-125-7-M4-2
EXCB2-FX40-3

资料下载

综合目录(摘录)	PDF图纸	DXF图纸	宣传单页	使用说明书	关于保证和环境管制	3D-CAD	Application.	升级工具
