PD4-12024-4-E

  • 标准品

The PD4-12024-4-E digital control unit can connect 24V input LED lighting with a total power consumption of up to 120W.
This control unit operates on an AC100-240V. External control protocol is Ethernet communication and PLCCOM communication.
Measures 190mm x 95mm x 106mm (width x depth x height).

AC power cable will be included in the standard model.
AC power cable will not be included in the model with "-NC" at the end.
The product with the model name with "-NC" at the end conforms to the KC standards.
For Korean and European customers, please select model name with "-NC" at the end.

PD4-12024-4-E-NC

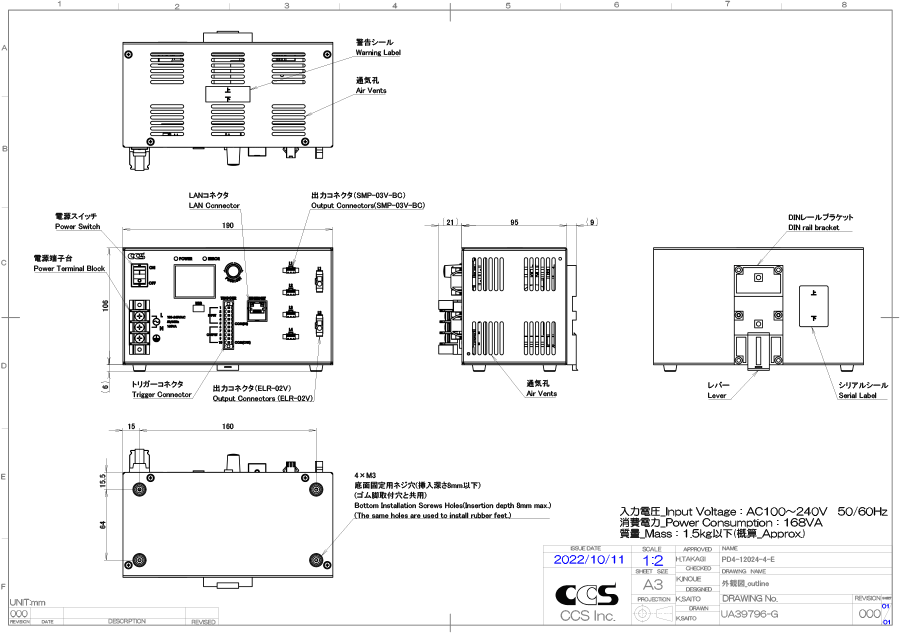

外形尺寸图(mm)

* Click to enlarge image.

选件

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

线缆

  • ACC-JIS-125-7-M4-2

  • EXCB2-FX40-3

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD Application. 升级工具
