PFBR-600SW2-LL

  • 标准品

PFBR-600 renewal PFBR-600SW2-LL provides high output to easily replace 350 W metal halide or xenon flash light sources.

  • Output increased more than 1.4x that of conventional products. *1
  • Stable light output is maintained over long periods with a service life of 23,000 hours*2
  • Continuous lighting and strobe lighting (internal trigger mode and external trigger mode) can be selected.
  • Available control modes include manual control and external control over Ethernet, parallel communication, and serial communication.
  • High-speed response 1 µs or faster

*1 Comparison with conventional product PFBR-600SW-LL
*2 Expected service life at 50% maximum light quantity when the feedback control function is enabled.

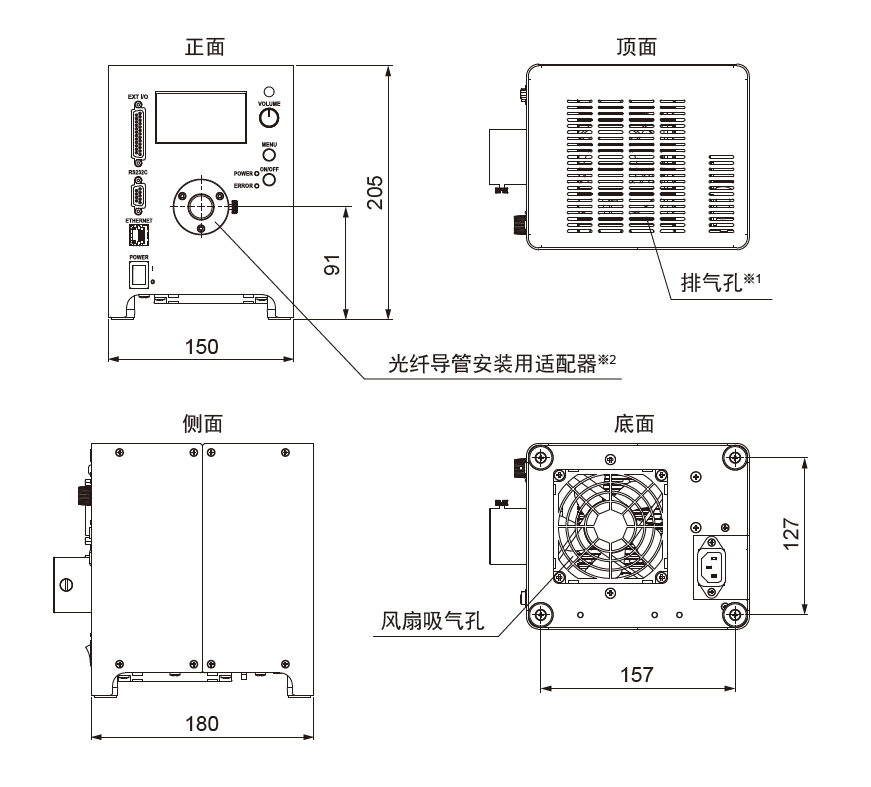

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

线缆

  • EXCB2-25M-3

选件

  • AD-PFBR-600-01

  • AD-PFBR-600-02

  • AD-PFBR-600-03

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 3D-CAD
