PD3-5024-3-ETK

  • 特殊定制品

This digital control unit with keep-alive function can be used for LED light units with an input voltage of 24 V within a total power consumption of 48 W.
It operates with 24 VDC input. It measures 84 x 82.6 x 120 mm (width x depth x height). External control through Ethernet communications.

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

产品详细信息

外观尺寸 W 84 mm x D 82.6 mm x H 120 mm
适合光源(输出定额) Light Units with 24 VDC input
Total for 3 channels: 48 W
通道数 3 channels
发光方式 Constant/Strobe lighting
驱动方式 Constant lighting
调光方式 PWM control, Lighting time control
调光 Manual: 256-step using the front setting switch
External: Command input via TCP/IP or UDP/IP communication
PWN频率 125 kHz
输入电压 24 VDC (21.6 to 26.4 V)
频率 50/60 Hz
消耗功率 52 W max.
输出电压 24 VDC
输出电流 Total for 3 channels: 1.9 A
错误检测显示 OCP is displayed on the digital display
错误检测输出 Command sent when overcurrent output is detected.
过电流保护 Yes
输出端口 SMP-03V-BC x 3
外部控制端口 Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins
For setting the light intensity/mode: RJ-45 connector
适合规格 CE, UKCA、RoHS
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 400 g
材质 Aluminium, ABS
附属品 使用说明书
备注 Keep-alive functions monitor the validity of the connection of the machine to the network, wherein to prevent the connection from dropping, a signal is periodically sent between machines.
Program 【Sample Program】
Sample programs are available. See the 软件工具 tab.

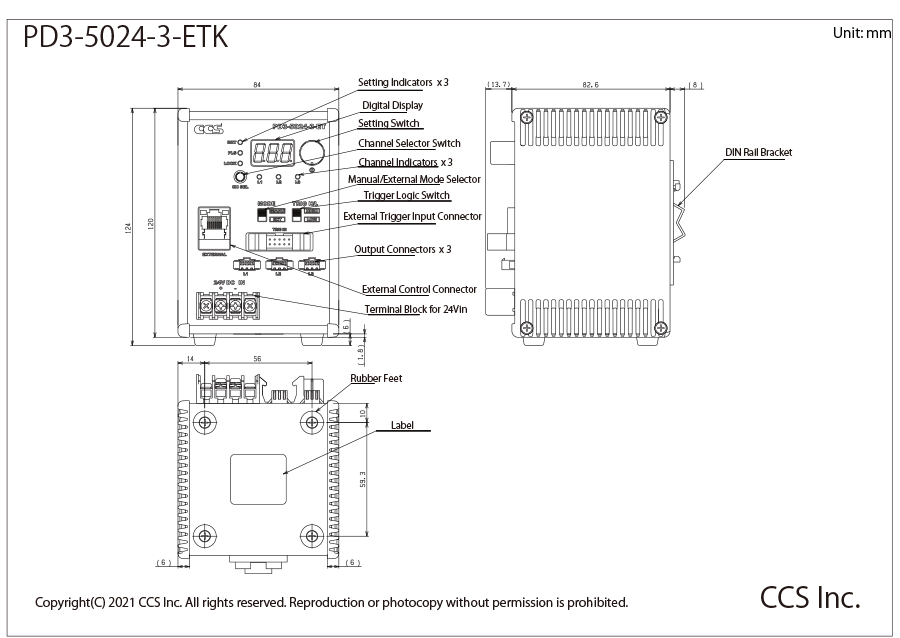

外形尺寸图(mm)

* Click to enlarge image.

软件工具

  • シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

资料下载

综合目录(摘录) PDF图纸 使用说明书
