HPR2-150RD-HFCT / HPR2-150SW-HFCT / HPR2-150BL-HFCT / HPR2-150FC-HFCT
- 特殊定制品
HPR2-HFCT Series half ring light with outer diameter 166 mm.
Available in 4 LED emission colors: red (HPR2-150RD-HFCT), white (HPR2-150SW-HFCT), blue (HPR2-150BL-HFCT), and full color RGB (HPR2-150FC-HFCT).

This is a made-to-order product. For queries and details, contact your CCS sales representative.
Custom orders are available to change the size, emission color, cable length, etc.
产品详细信息
LED发光颜色 | Red, White, Blue, RGB (Red, Green, Blue) |
---|---|
外观尺寸 | See Dimensions tab page |
输入电压 | 24 VDC |
消耗功率 | Red: Contact us White: 14 W max. Blue: Contact us RGB: Contact us |
线缆长度 | 0.3 m |
适合规格 | RoHS |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
注意事项 | The full-color type (HPR2-150FC-HFCT) has three connectors. Use a 3-channel control unit if controlling intensity separately for each color. Cannot be used with the strobe control unit (overdrive mode). |

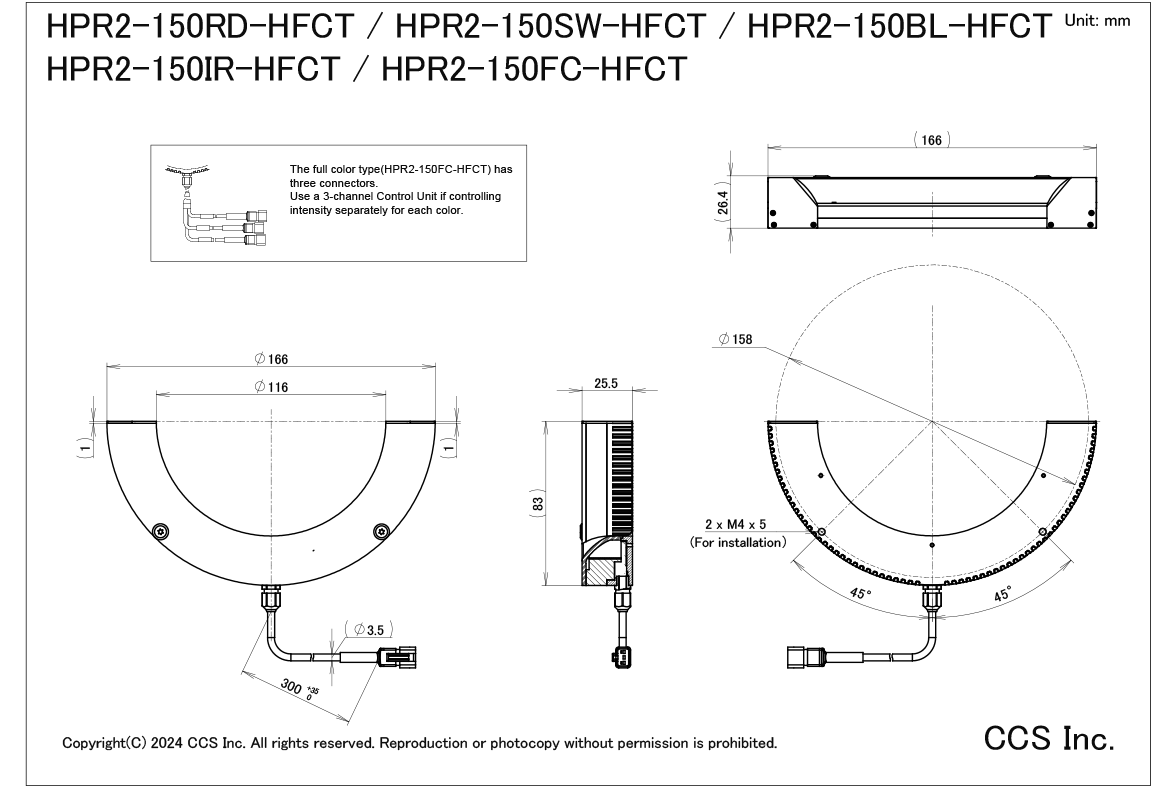

外形尺寸图(mm)
资料下载
