FCB-AI-□-C4

Extension cables and Flying leads cables for CCS AItec(LN-EAA/LN-EBA). FCB-AI/A Series.

LN-EAA/LN-EBA Series page


Lengths: 2, 3, 5 and 10 m (□ = 2, 3, 5, 10).
The external dimensions are different between [the 2,3m type] and [the 5,10m type]. Please check the drawing for details.

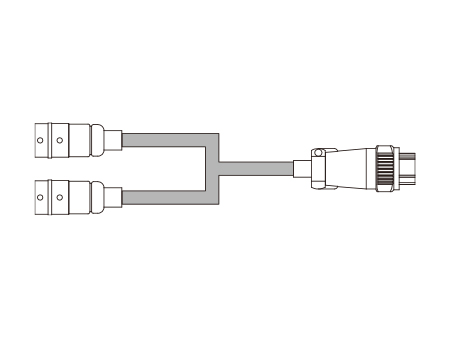

Two 12-pin metal connector for Light Unit side and 7-pin metal connector for Power Supply Unit side.

产品详细信息

线缆长度 2, 3, 5 and 10 m
最小弯曲半径(参考值) 2 m, 3 m　→　42 mm
5 m, 10 m　→　54.6 mm
电源侧端口 Metal connector (7-pin)
光源侧端口 Metal connector (12-pin) × 2
适合规格 CE, UKCA、RoHS
使用温湿度 Temperature: 0 to 40°C, Humidity: 30% to 85%RH (with no condensation)
保存温湿度 Temperature: 0 to 50°C, Humidity: 30% to 85%RH (with no condensation)

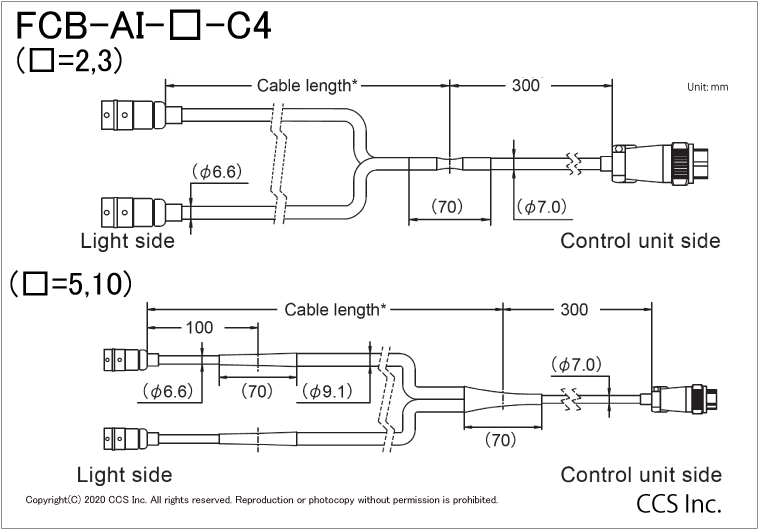

外形尺寸图(mm)

资料下载

PDF图纸 DXF图纸
