PD3-10024-8-SI(A)

  • 标准品

This Digital Control Unit can be used for LED Light Units with an input voltage of 24 V within a total power consumption of 95 W.
Connection with the HLV3/HLV2-series Spot Lights is also available.
This Control Unit operates on a 100 to 240 VAC input and measures 220 x 82.6 x 120 mm (width x depth x height). External control through EIA-485 communications.

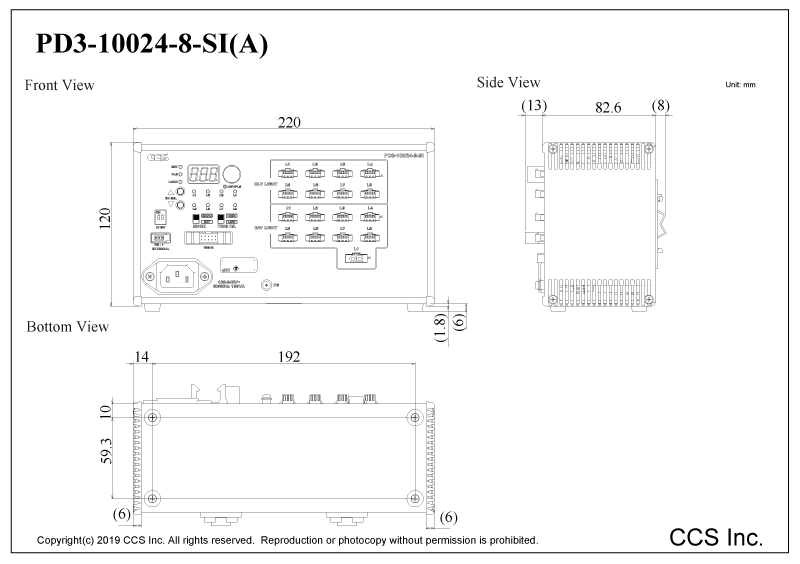

外形尺寸图(mm)

* Click to enlarge image.

选件

  • シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers

线缆

  • ECNR-E3CN4

  • EXCB2-E3-3

  • EXCB2-E3-E3-0.2

  • EXCB2-M10-3

资料下载

综合目录(摘录) PDF图纸 DXF图纸 使用说明书 关于保证和环境管制 3D-CAD
