LFXV-PF-100SW

  • 标准品

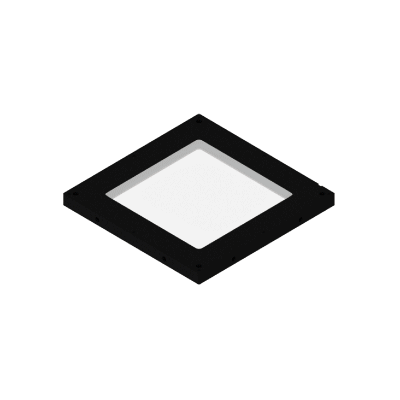

This flat dome light emits white light and measures 143 x 143 x 10 mm (width x depth x height).

产品详细信息

LED发光颜色 White
相关色温 5600 K typ.
外观尺寸 W 143 mm x D 143 mm x H 10 mm
峰值电流 36 A
输入电压 48 VDC max.
极性, 信号 1, 2, 5, 6: (+)/3, 4, 7, 8: (-)/9: NC
线缆长度 300 mm
外壳材质 Aluminum alloy, resin (protective plate, light-guiding diffusion plate)
输入端口 ELP-09V
适合规格 CE, UKCA, RoHS, IEC 62471（Exempt）
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation)
保存温湿度 Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation)
冷却方式 Natural air cooling
重量 440 g
附属品 User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9)
备注 Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%).
* The duty cycle is expressed by the following equation:
Duty cycle (%) = 100 x Strobe time / Strobe cycle

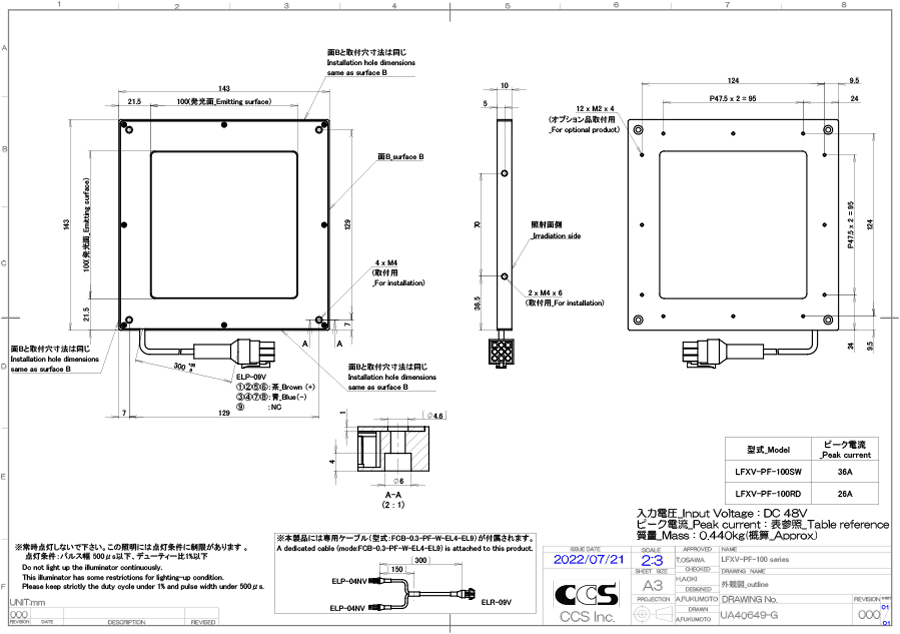

外形尺寸图(mm)

* Click to enlarge image.

选件

Protective Plate PR-LFXV Series

Protects the light-guiding diffusion plate of the Light Unit. It is not available to use this product for protection use from any damages caused by dust, water and etc.
See the series page for specifications and lineup.

Protective Plate PR-LFXV Series

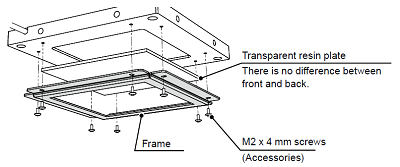

Mounting method

PR-LFXV mounting method

线缆

  • FCB-1-PF-EL9

  • FCB-2-PF-EL9

  • FCB-3-PF-EL9

  • FCB-5-PF-EL9

电源

Control Unit Guide(PDF)

  • PF-A4048-2

  • PF-A16048-4
