FCB-AI-□-C3

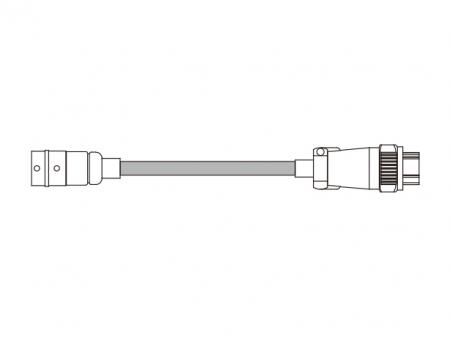

Extension cables and Flying leads cables for CCS AItec(LN-EAA/LN-EBA). FCB-AI/A Series.

LN-EAA/LN-EBA Series page


Lengths: 2, 3, 5 and 10 m (□ = 2, 3, 5, 10).

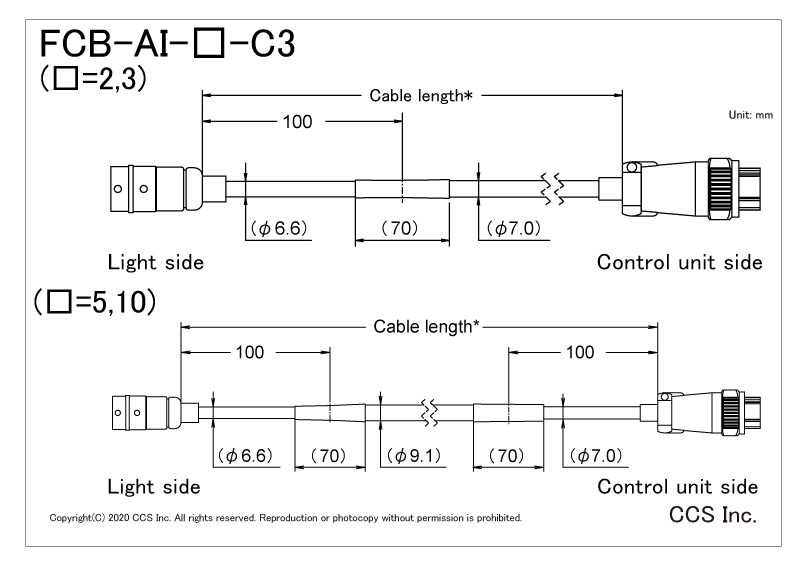

The external dimensions are different between [the 2,3m type] and [the 5,10m type]. Please check the drawing for details.

12-pin metal connector for Light Unit side and 7-pin metal connector for Power Supply Unit side.

外形尺寸图(mm)

资料下载

PDF图纸 DXF图纸
