LFX2 Series

Not available from "Feb/28/2018."
The recommended alternative series is LFX3 Series

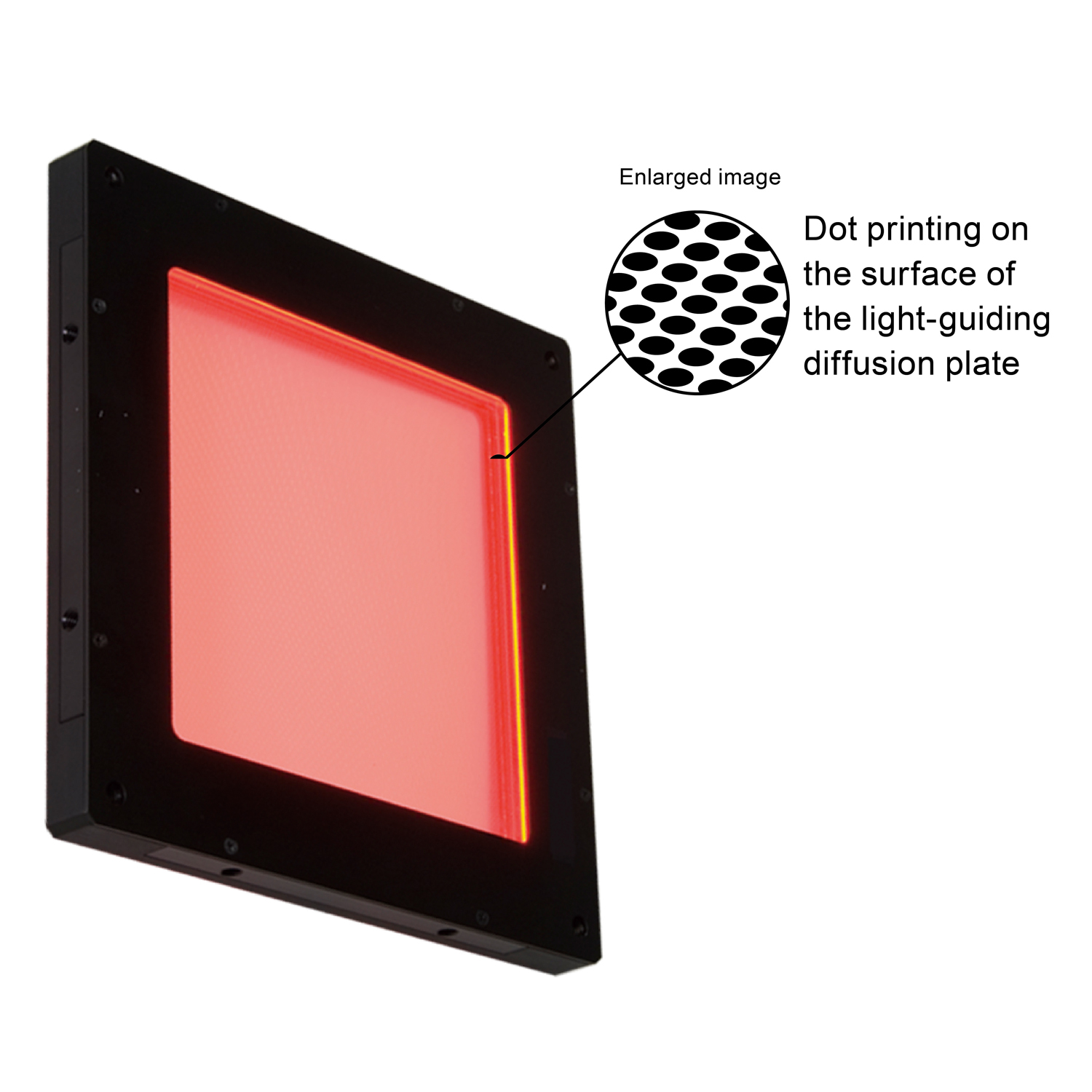

These epoch-making Light Units were achieved through our unique lighting technology. The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the light. Uniform and shadow-free diffused light can be radiated onto the workpiece. Emitting power is greater than the LFX Series.

Download Pamphlet PDF

特点

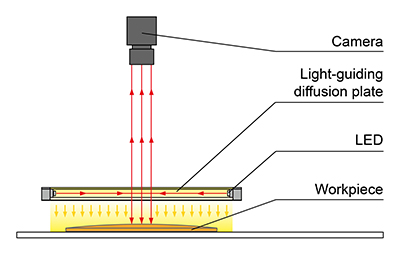

The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the illuminated light.
This product can illuminate uniform diffused light onto the workpiece.

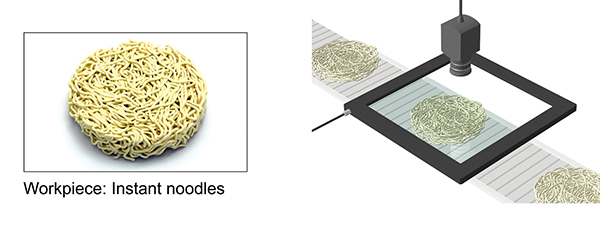

Example configuration

LFX2-100

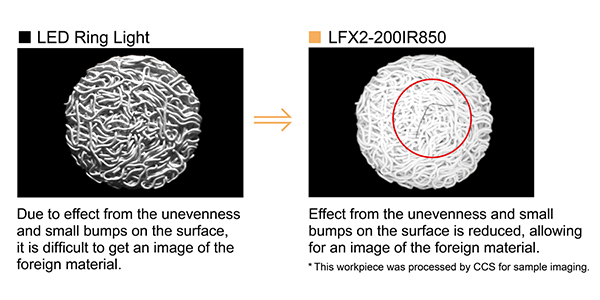

成像实例

Imaging of foreign materials mixed in instant noodles
