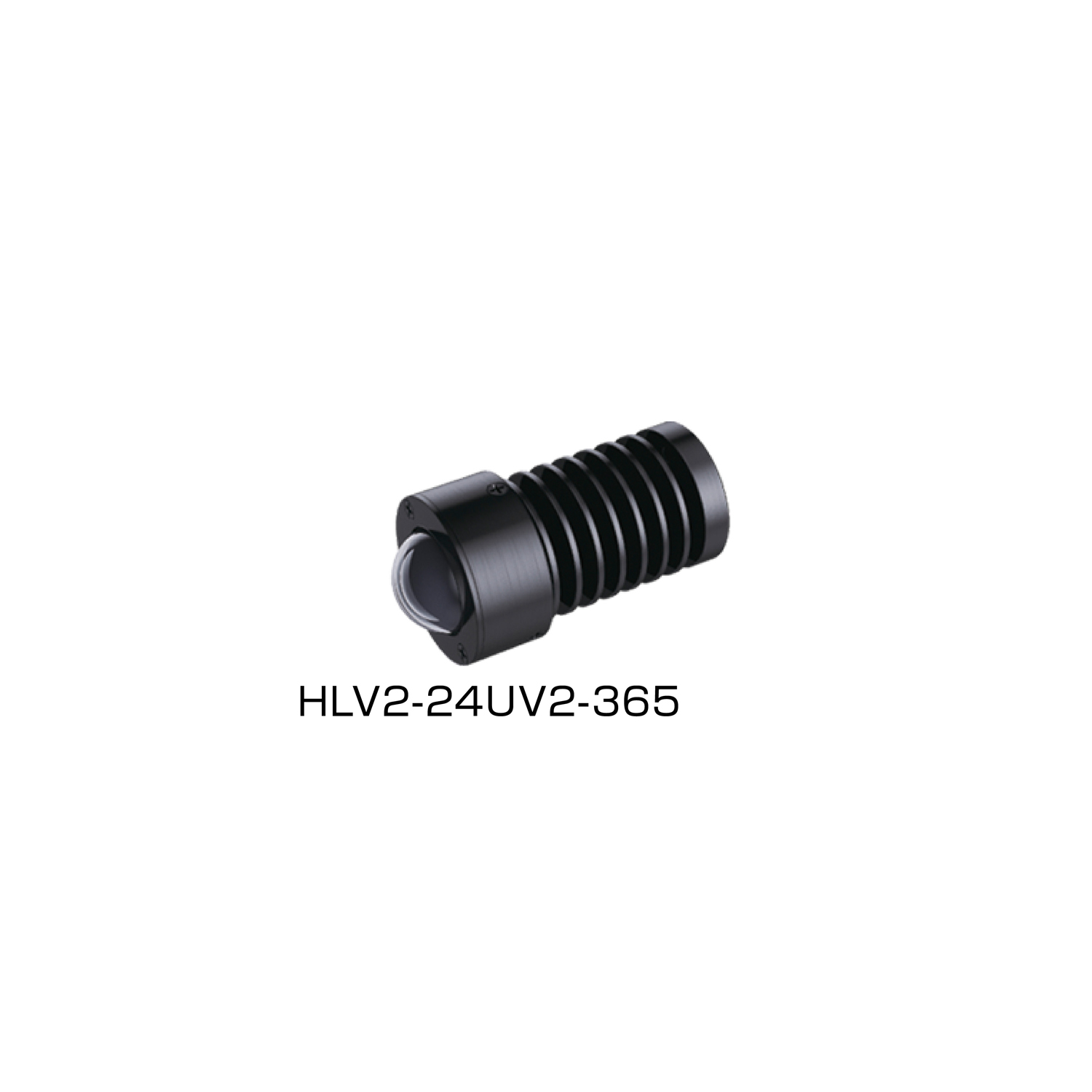

HLV2-24UV2-365

  • 标准品
  • 生产终止品

Not available from "June/30/2023".
The recommended alternative model is HLV2-24UV3-365.

This Spot Light Unit emits UV light and has an outer diameter of 24 mm, tip diameter of 28mm, and total length of 54 mm.

Note: Select a Power Supply Unit with the number of channels corresponding to the number of Light Units to be used or the number of input connectors on the Light Units. Also make sure that the total power consumption of the Light Units is within the output power capacity of the Power Supply Unit to which they are connected.

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

电源

Control Unit Guide(PDF)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • CC-PJ-0707

  • PJ-1505-2CA

  • PJ-1505-3CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

资料下载

PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
