LFV3-G-30X60RD

  • 标准品

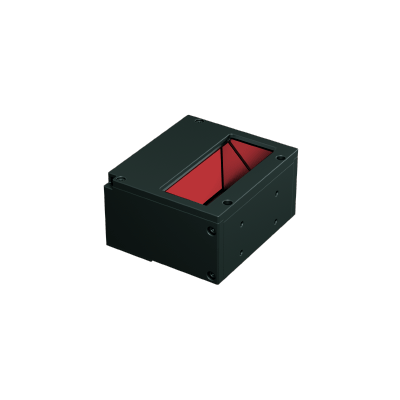

This Light Unit emits red light and measures 68 x 60 x 35 mm (width x depth x height).
The light-emitting surface measures 30 x 60 mm.
High-Resolution Camera Compatible Coaxial Lights

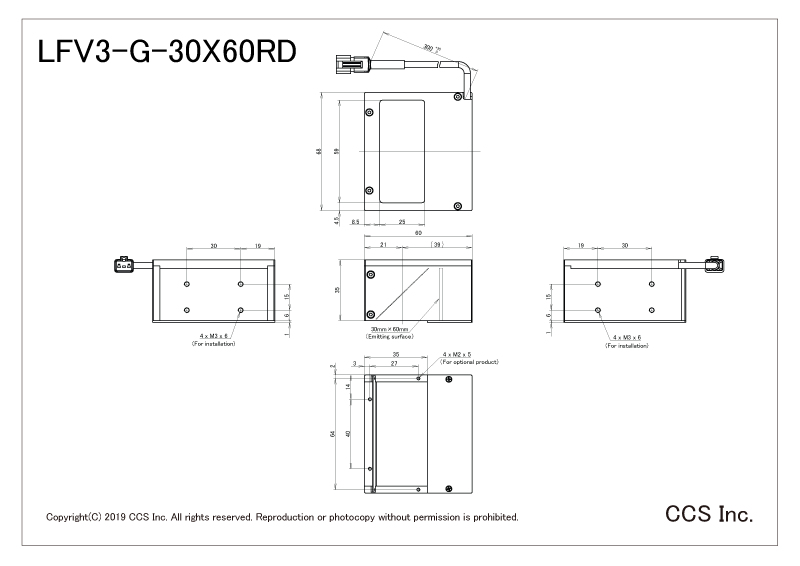

外形尺寸图(mm)

* Click to enlarge image.

选件

Protective Plate( PR Series )

  • Protective plates are available to prevent any reductions in performance due to intrusion of foreign matter into the lights.
  • Anti-reflective (AR coating) has been applied.

Protective Plate (PR Series)

Model name Compatible light
PR-LFV3-27 LFV3-G-27
PR-LFV3-30X60 LFV3-G-30X60
PR-LFV3-35 LFV3-G-35
PR-LFV3-50 LFV3-G-50
PR-LFV3-50X100 LFV3-G-50X100
PR-LFV3-70 LFV3-G-70
PR-LFV3-100 LFV3-G-100
PR-LFV3-100X200 LFV3-G-100X200

电源

Control Unit Guide(PDF)

  • PD4-6024-2-P

  • PD4-6024-2-E

  • PD4-6024-4-P

  • PD4-6024-4-E

  • PD4-12024-2-P

  • PD4-12024-2-E

  • PD4-12024-4-P

  • PD4-12024-4-E

  • CD-VA10024-2P

  • CD-VA20024-4P

  • CD-VA10024-2PE

  • CD-VA20024-4PE

  • PB-2430-1

  • PD2-3024-8(A)

  • PD2-3024-4(A)

  • PTU2-3024(A)

  • PD2-3024(A)

  • PD2-3024-2(A)

  • PD3-3024-3-EI(A)

  • PD3-3024-3-ET(A)

  • PD3-3024-3-PI

  • PD3-3024-3-PT

  • PD3-3024-3-SI(A)

  • CN-4024-2-EIPT

  • POD-5024-2-PEI

  • PD2-5024(A)

  • PD3-5024-4-EI(A)

  • PD3-5024-4-ET(A)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-3-ET(A)

  • PD3-5024-3-PT

  • PD3-10024-8-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • POD-22024-4-PEI

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-W-1

    Cable length: 1 m
    2-branch cable

  • FCB-W-2

    Cable length: 2 m
    2-branch cable

  • FCB-W-3

    Cable length: 3 m
    2-branch cable

  • FCB-W-5

    Cable length: 5 m
    2-branch cable

  • FCB-F-1

    Cable length: 1 m
    4-branch cable

  • FCB-F-2

    Cable length: 2 m
    4-branch cable

  • FCB-F-3

    Cable length: 3 m
    4-branch cable

  • FCB-F-5

    Cable length: 5 m
    4-branch cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
