通过独创的光学设计,可抑制光的衍射,实现高精度的外观成像。
适用于要求高精度的尺寸测量、伤痕及褶皱检测。
产品阵容有与传统产品相同的12V机型、新的24V机型,

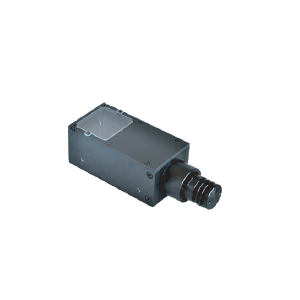

新增可以与点光源组合使用的背光源单元(KT-MFU)。
- Illumination Structure
- These Coaxial Light Units radiate collimated light through the use of the unique lighting technology. External photography with high accuracy can be achieved by suppressing the scattering of light.
微型光纤照射头(HFS系列/HFR系列)专用光源。
实现适合被测物体的照射颜色的全色光源。
注:这些光源需要具备点光源用输出端口的电源。详细内容请参照光源型号页的[电源]栏。
微型光纤照射头(HFS系列·HFR系列)专用光源。
采用独创的光学设计照射高输出的点光。
注意:这些光源需要具有点光源用的输出端子的电源。
可用电源,取决于光源的输入电流。
相关详细信息,请参阅光源类型页面中的[电源]栏
Expanded lineup with higher output than the conventional UV series and UV2 series.
・Line, ring, bar and spot types
・Available wavelengths: 365 nm, 385 nm, 395nm and 405 nm*1.
・Two types of directivity: wide types to illuminate a wide area and narrow types for convergent illumination on a narrow area*2.
・Maximum 2 times higher output than conventional UV2 series. Overdrive available to increase inspection speed.
・For various inspection applications such as fluorescence observation, coating inspection, and defect detection.
*1 385/395/405 nm models are made to order.
*2 Ring type (LDR2), bar type (LDL), and high power line type (LNSP-FN) are available in two directivity types (wide and narrow).
使用高输出红外LED的IR系列1000nm以上型
- 备有1050nm、1200nm、1300nm、1450nm、1550nm、1650nm的6种波长
- 实现了比传统产品高3.4倍※的高输出化
(※在传统产品LDL-74X27IR105-24和LDL2-74X30IR105的比较中)
- 可提供近红外相机和近红外镜头的综合方案
- 可以根据用途定制光源的形状和尺寸
