HLDR-IP67-100VL3-385 / HLDR-IP67-100VL3-395 / HLDR-IP67-100VL3-405

  • 标准品

Waterproof ring type violet LED light for convergent illumination.
Available wavelengths: 385nm (HLDR-IP67-100VL3-385), 395nm (HLDR-IP67-100VL3-395), and 405nm (HLDR-IP67-100VL3-405)
IP67 compliance. Outer diameter of 100 mm, inner diameter of 43 mm, and height of 33.5 mm.

This product is made to order. Please contact your sales representative for details.

产品详细信息

LED发光颜色 Violet
峰值发光波长 385 nm typ, 395 nm typ, 405 nm typ
外观尺寸 Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm
输入电压 24 VDC
消耗功率 18 W max.
极性, 信号 1: (24+), 2: NC, 3: GND(-), 4: NC
外壳材质 Body: aluminum alloy (black anodized)
Screws: SUS
Washers: SUS, elastomer (TPE)
Connectors: PA resin
Lens: silicone
输入端口 XS2M-D423 (Manufactured by OMRON)
适合规格 CE, UKCA, RoHS, REACH
IEC 62471
HLDR-IP67-100VL3-385: High risk
HLDR-IP67-100VL3-395: High risk
HLDR-IP67-100VL3-405: Mod risk
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 420 g max.
附属品 使用说明书
注意事项 * After cleaning manufacturing lines, be sure to wipe away any moisture remaining on the lens. Imaging can be affected by moisture on the lens.
* Use water to wash away any cleaning agent adhered to this product.
* Use water to wash away any oils or chemicals adhered to this product.
* The Control Unit connectors (SM connectors) on dedicated cables are not waterproof.
备注 IP67 is the protection classification of an electric device against intrusion of foreign objects.
-The first digit, 6, indicates the following protection level.
Dust protected: Totally protected against dust.
-The second digit, 7, indicates the following protection level.
Immersion protected: Protected against short periods of immersion in water
under defined conditions of pressure and time.
If the height of the device is less than 850 mm, immersion at a depth of 1 m is allowed for a duration of 30 minutes.

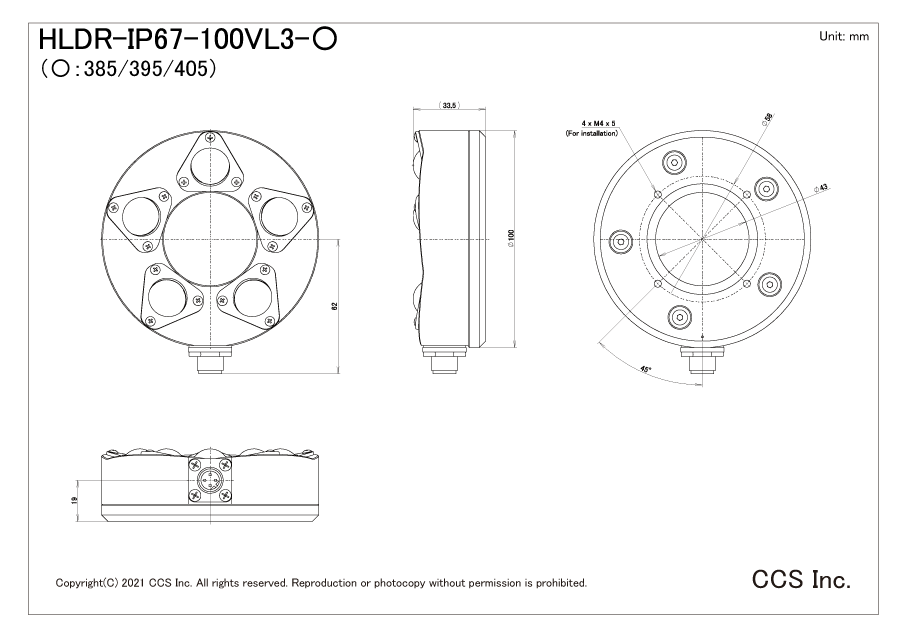

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-3024A-2-P

  • PD4-3024A-2-P-NC

  • PD4-3024A-2-E

  • PD4-3024A-2-E-NC

  • PD4-3024A-4-P

  • PD4-3024A-4-P-NC

  • PD4-3024A-4-E

  • PD4-3024A-4-E-NC

  • PD4-12024A-8-P

  • PD4-12024A-8-P-NC

  • PD4-12024A-8-E

  • PD4-12024A-8-E-NC

  • PD4-6024-2-P

  • PD4-6024-2-P-NC

  • PD4-6024-2-E

  • PD4-6024-2-E-NC

  • PD4-6024-4-P

  • PD4-6024-4-P-NC

  • PD4-6024-4-E

  • PD4-6024-4-E-NC

  • PD4-12024-2-P

  • PD4-12024-2-P-NC

  • PD4-12024-2-E

  • PD4-12024-2-E-NC

  • PD4-12024-4-P

  • PD4-12024-4-P-NC

  • PD4-12024-4-E

  • PD4-12024-4-E-NC

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-3024-3-SI(A)

  • PD3-3024-3-EI(A)

  • PD3-3024-3-PT

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PD3-3024-3-ET(A)

  • PD3-3024-3-PI

  • PD3-5024-3-PT

  • PD3-5024-3-ET(A)

  • PD2-3024-8(A)

  • PD2-3024-4(A)

  • PD2-3024(A)

  • PD2-3024-2(A)

  • PD2-5024(A)

线缆

  • FCB-1-M12

  • FCB-2-M12

  • FCB-3-M12

  • FCB-5-M12
