HLDR-IP67-100UV3-365

  • 标准品

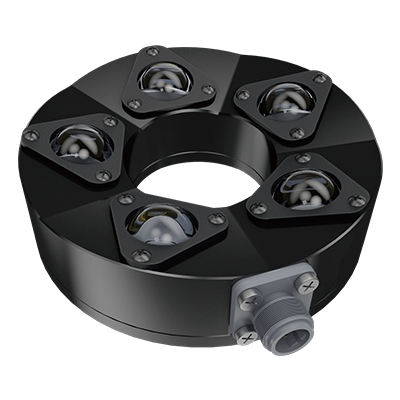

Waterproof ring type ultraviolet LED light for convergent illumination with a peak wavelength of 365 nm.
IP67 compliance. Outer diameter 100 mm, inner diameter 43 mm, height 33.5 mm.

产品详细信息

LED发光颜色 Ultraviolet
峰值发光波长 365 nm typ.
外观尺寸 Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm
输入电压 24 VDC
消耗功率 18 W max.
极性, 信号 1: (24+), 2: NC, 3: GND(-), 4: NC
外壳材质 Body: aluminum alloy (black anodized)
Screws: SUS
Washers: SUS, elastomer (TPE)
Connectors: PA resin
Lens: silicone
输入端口 XS2M-D423 (Manufactured by OMRON)
适合规格 CE, UKCA, RoHS, IEC 62471 (High risk), IP67 (JIS C 0920)
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 420 g max.
附属品 User Manual, Radiation aperture seal, UV DANGER seal
注意事项 * Do not expose your eyes or skin to direct UV irradiation.
* When using an UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
* Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
* Wear long sleeves and gloves to protect your skin from UV irradiation.
* Thoroughly educate all those involved near the product about the dangers of UV LEDs.
* After cleaning manufacturing lines, be sure to wipe away any moisture remaining on the lens. Imaging can be affected by moisture on the lens.
* Use water to wash away any cleaning agent adhered to this product.
* Use water to wash away any oils or chemicals adhered to this product.
* The Control Unit connectors (SM connectors) on dedicated cables are not waterproof.
备注 IP67 is the protection classification of an electric device against intrusion of foreign objects.
-The first digit, 6, indicates the following protection level.
Dust protected: Totally protected against dust.
-The second digit, 7, indicates the following protection level.
Immersion protected: Protected against short periods of immersion in water
under defined conditions of pressure and time.
If the height of the device is less than 850 mm, immersion at a depth of 1 m is allowed for a duration of 30 minutes.

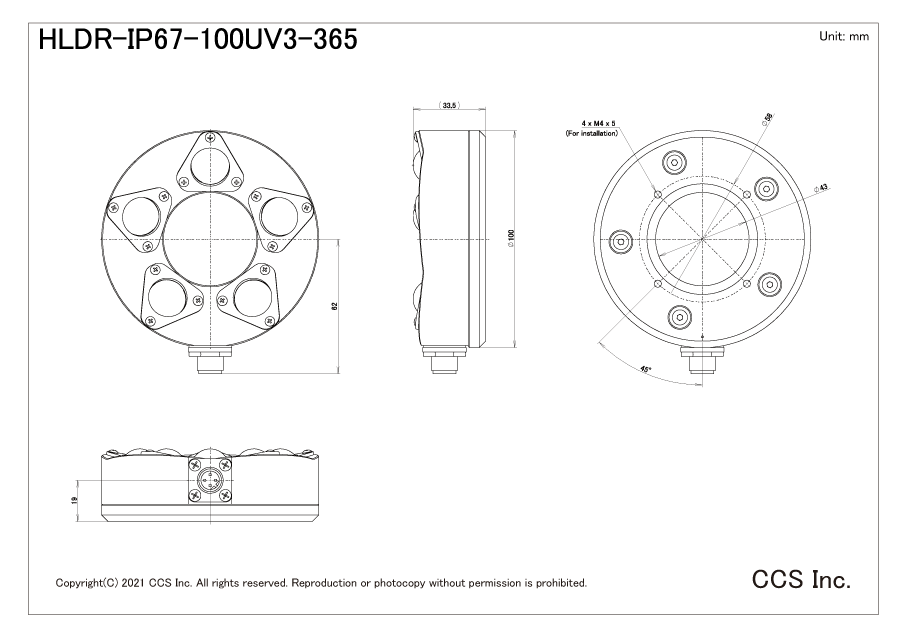

外形尺寸图(mm)

* Click to enlarge image.
