LDL-222X42CIR-LACL

  • 特殊定制品

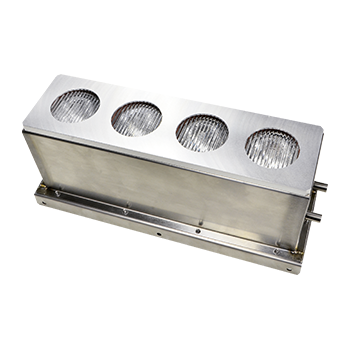

Diffused Type Hyperspectral Imaging Light LDL-222X42CIR-LACL
High intensity emission using convergent lamps.
Optimal for hyperspectral projects demanding high intensity, and for high speed SWIR applications.

产品详细信息

输入电压 [output ratings] DC12V [range] DC11.4 to 12V
消耗功率 87 W max.
外壳材质 SUS
输出端口 HR34B-12WRA-10P
适合规格 CE, UKCA, RoHS, IEC 62471（High risk）
使用温湿度 Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20% to 70%RH (with no condensation)
冷却方式 Natural air cooling
重量 1740 g max.
附属品 使用说明书
备注 Warranty Period: 6 months, starting from CCS Inc. shipping date
*However, if the accumulated lighting time exceeds 2,500 hours, the warranty is void even if it is within the warranty period.

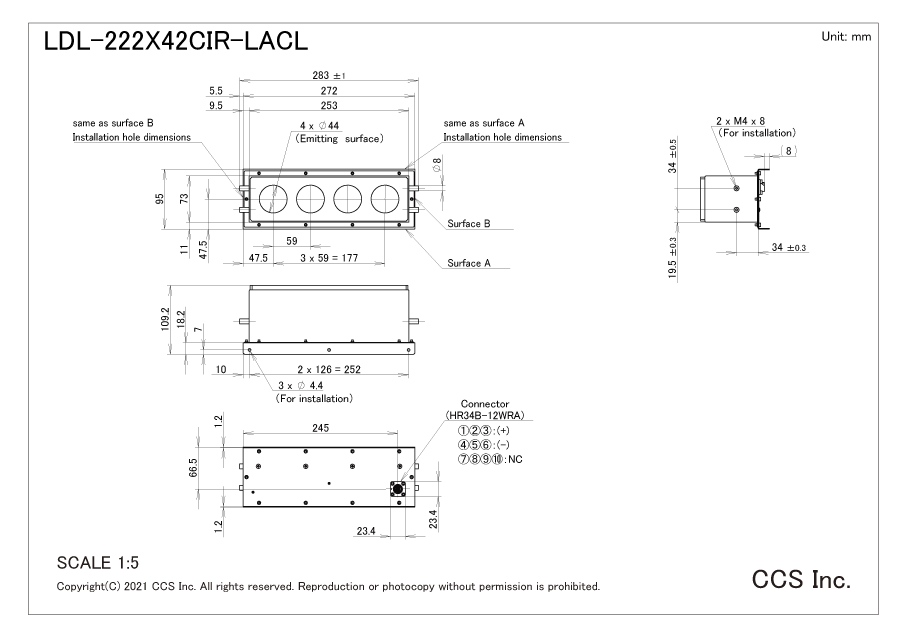

外形尺寸图(mm)

* Click to enlarge image.

选件・电源

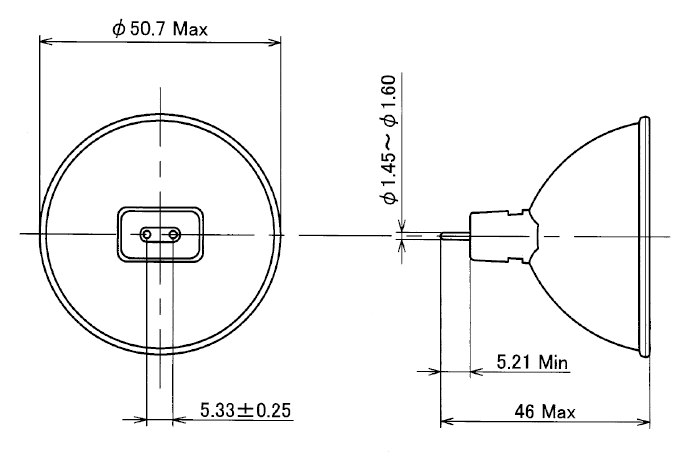

Option Replacement Bulb

Option Cable : FCB-2-NC6HR10

Band-pass Filters : F-BP Series

We offer lens filters that transmit light in a specific wavelength range,
including bandpass filters for wavelengths of 1000 nm or more.
Please contact your sales representative for details.

Contact us

Halogen Lamp Dedicated Power Supply CB-HLG-300 (purchased product)

Halogen Lamp Dedicated Power Supply CB-HLG-300 (purchased product)
  • Supports Ethernet communication and RS-232C communication.
  • With burn-out error detection function.
  • With lighting accumulated time count function.
  • Output voltage 11.8 VDC ±0.2 V.
  • Output power 300 W Max.

    • Contact us

    Applicable Light Units LDL-222X42CIR, LDL-222X42CIR-LACL
    and custom-made products in the series above.
    *Cannot be used with TH-200X30CIR or LN-200CIR.

    warranty for these products differ from standard CCS products.please contact your local sales office for details.
