MFU-34X30BL2-12

  • 标准品

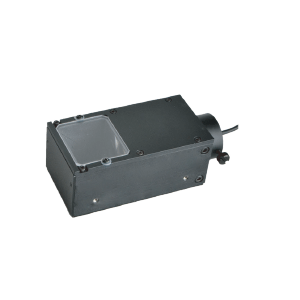

MFU-34X30BL2-12 coaxial light for collimated backlighting.
Measures W 46 mm x D 110 to 143 mm x H 38 mm, LED emission color blue, Input voltage 12V type.

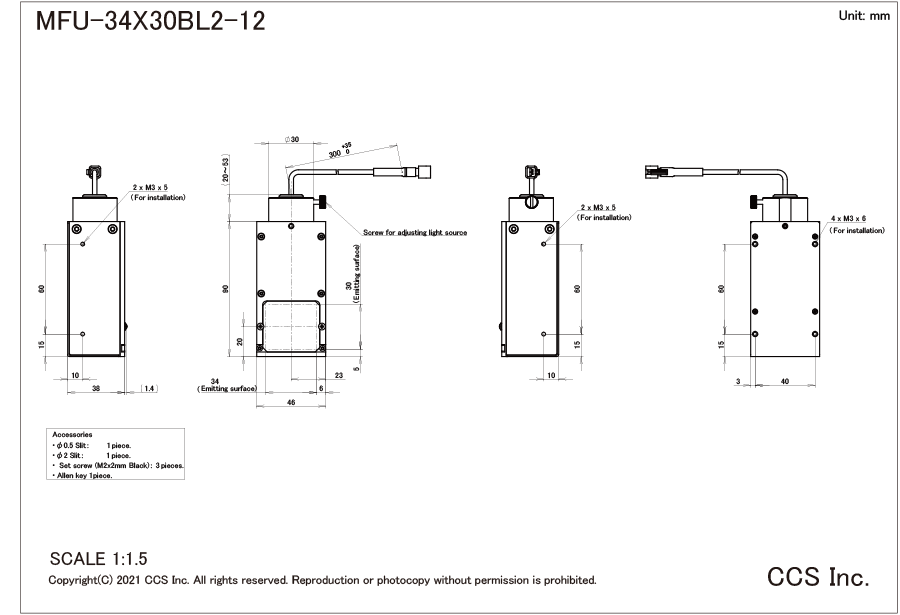

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • CB-1

  • CB-2

  • CB-3

  • CB-5

  • CB-F-1

  • CB-F-2

  • CB-F-3

  • CB-F-5

  • CB-W-1

  • CB-W-2

  • CB-W-3

  • CB-W-5

  • RCB-1

  • RCB-2

  • RCB-3

  • RCB-5

电源

Control Unit Guide(PDF)

  • PD2-3012-8(A)

  • PD2-3012-4(A)

  • PD2-3012(A)

  • PD2-3012-2(A)

  • PD2-1012(A)

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD 操作程序
