PD3-10024-8-SI-500 / PD3-10024-8-PI-500 / PD3-10024-8-EI-500

  • 特殊定制品

PD3-10024-8 series high-frequency digital control unit with PWM frequency 500kHz.
External control through
parallel communication (PD3-10024-8-PI-500),
Ethernet communication (TCP/IP UDP/IP) (PD3-10024-8-EI-500),
and EIA-485 communication (PD3-10024-8-SI-500),
external trigger signal communication NPN input model.

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Features / PWM Frequency

PD3-10024-8 series high-frequency digital control unit with PWM frequency 500kHz.
External control through
parallel communication (PD3-10024-8-PI-500),
Ethernet communication (TCP/IP UDP/IP) (PD3-10024-8-EI-500),
and EIA-485 communication (PD3-10024-8-SI-500),
external trigger signal communication NPN input model.

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Lineup of Models with 500 kHz PWM Frequency (Custom Order Products)

When selecting a digital power supply, consider using the higher frequency type. Power supplies with a PWM frequency of 500 kHz can be made to order. Contact our local sales office for details.

Introducing High Frequency Power Supplies (Custom Order) PD3-10024-8 Series

  • PWM Dimmer Control (500 kHz)
  • 95 W Capacity (EL Connector: 1 Channel)
  • AC Input
  • 3 types of external control
    • Parallel communication
    • Ethernet communication (TCP/IP UDP/IP)
    • EIA-485 communication

PD3-10024-8-PI-500
(Parallel type)

PD3-10024-8-PI-500(Parallel type)

PD3-10024-8-EI-500
(Ethernet type) (TCP/IP UDP/IP)

PD3-10024-8-EI-500(Ethernet type) (TCP/IP UDP/IP)（TCP/IP UDP/IP）

PD3-10024-8-SI-500
(EIA-485 type)

PD3-10024-8-SI-500(EIA-485 type)

Effect of PWM Frequency versus Brightness

Effect of PWM Frequency versus Brightness

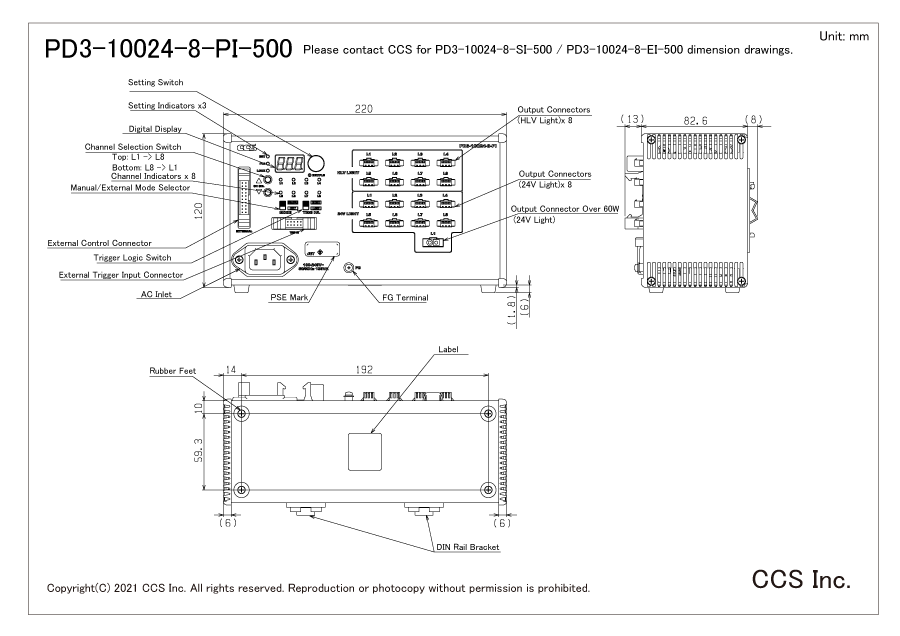

外形尺寸图(mm)

* Click to enlarge image.
* Please contact us for the drawings of PD3-10024-8-SI-500 / PD3-10024-8-EI-500.
