PD3-5024-3-PT-PNP

  • 特殊定制品

This digital control unit can be used for LED light units with an input voltage of 24 V within a total power consumption of 48 W.
It operates with 24 VDC input. It measures 84 x 82.6 x 120 mm (width x depth x height). External control through Parallel communications, external trigger signal communication PNP input model.

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

产品详细信息

外观尺寸 W 84 mm x D 82.6 mm x H 120 mm
适合光源(输出定额) Light Units with 24 VDC input
Total for 3 channels: 48 W
通道数 3 channels
驱动方式 Constant lighting
发光方式 Constant/Strobe lighting
调光方式 PWM control, Lighting time control
调光 Manual: 256-step using the front setting switch
External: 8-bit input (B0 to B7), write pulse (BRTWR), and channel selection (CHSEL0 to CHSEL2)
PWN频率 125 kHz
频率 50/60 Hz
输入电压 24 VDC (21.6 to 26.4 V)
消耗功率 52 W max.
输出电压 24 VDC
输出电流 Total for 3 channels: 1.9 A
错误检测显示 OCP is displayed on the digital display
错误检测输出 NPN transister output to the External control connector pins between 19(OC) and 20(OE); open for normal operation, closed for overcurrent detection.
过电流保护 Yes
输出端口 SMP-03V-BC x 3
外部控制端口 Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins
For setting the light intensity/mode: MIL connector (MIL-C-83503 compliant), 20 pins
适合规格 CE, UKCA、RoHS
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 400 g
材质 Aluminium, ABS
附属品 使用说明书

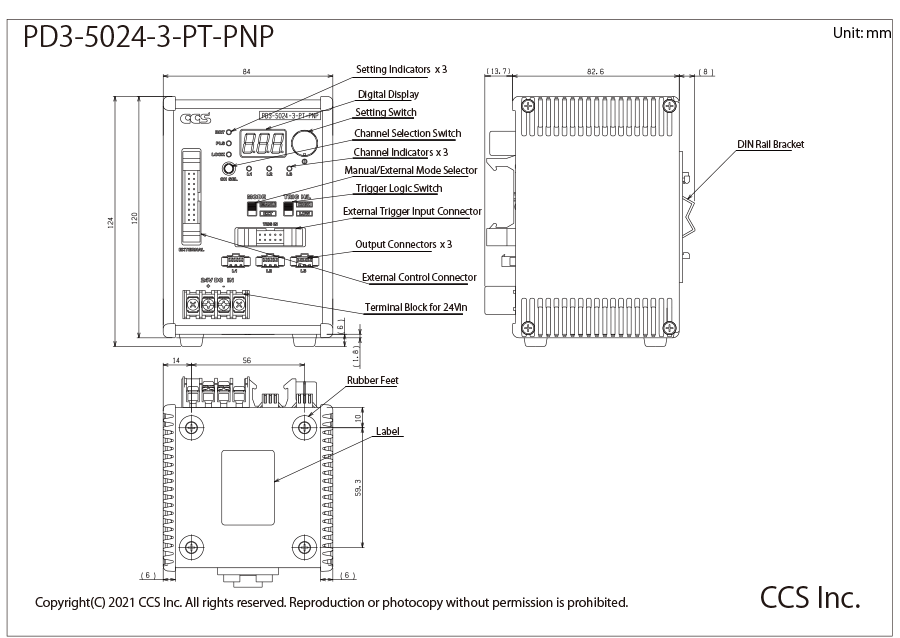

外形尺寸图(mm)

* Click to enlarge image.

External Trigger Signal Connection Example

l(custom order product: PD3-PNP)
