PFBR-600SW-LLCF-HD
- 特殊定制品
- 生产终止品
Not available from Mar/11/2022".
The recommended alternative model is PFBR-600SW2-LLCF-HD.
High Power & High Speed Switching PFBR-600SW-LLCF-HD (Custom Model)
By applying preset light intensity values in a sequence according to the trigger input, it is possible to change light intensity at high speed (2 - 8 patterns). It is suited for inspections where the workpiece surface has differing reflectivity or transparency.Filter Changer Model.
This is a made-to-order product. For queries and details, contact your CCS sales representative.

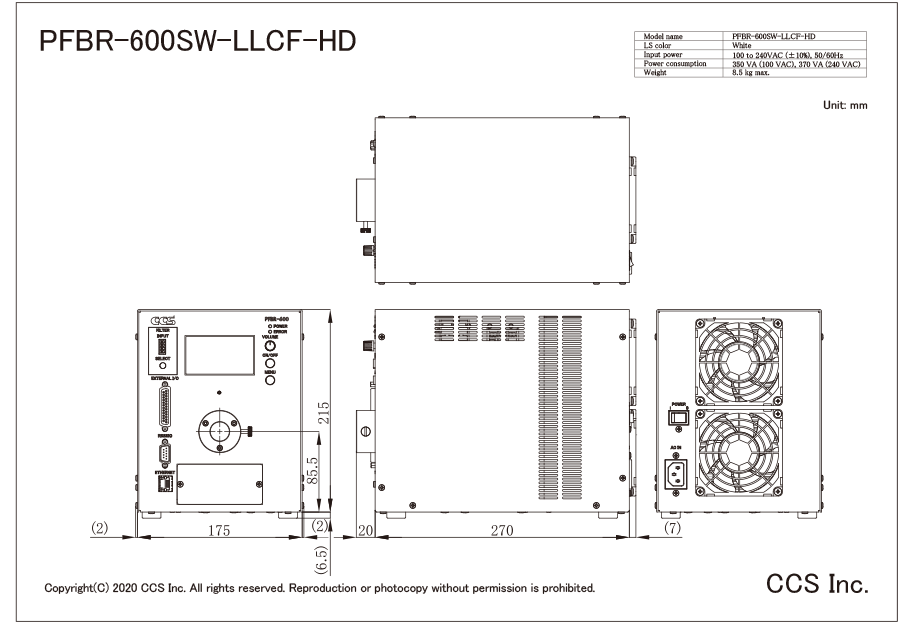

外形尺寸图(mm)
Example
Workpiece sample of electrode sheet
(same workpiece under different light intensity set for each trigger input)
Triger 1 / Light Intensity:40
Triger 2 / Light Intensity:70
Triger 3 / Light Intensity:100
Triger 4 / Light Intensity:130
Triger 5 / Light Intensity:160
Triger 6 / Light Intensity:190
Triger 7 / Light Intensity:230- ss="col-md-3 marB1">
Triger 8 / Light Intensity:255
Timing Chart
滤镜转换器
Filter Changer Model
Use color filters to emit light at specific wavelengths.
- Equipped with a multi-filter changer that holds five filters.
- Filters can be changed manually and using external communication.
- Easily replace filters by removing the front cover.
- Filters available in six colors.
A variety of filters are available with excellent heat resistance.
