LFV3-G-100X200SW

  • 标准品

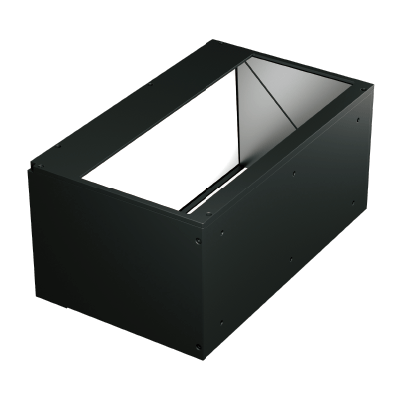

This Light Unit emits white light and measures 226 x 138 x 106 mm (width x depth x height).
The light-emitting surface measures 100 x 218 mm.
High-Resolution Camera Compatible Coaxial Lights

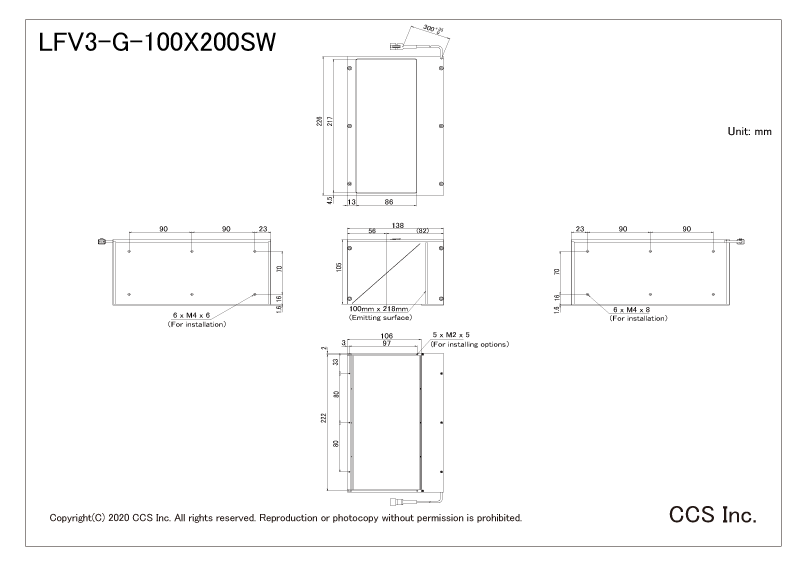

外形尺寸图(mm)

* Click to enlarge image.

选件

Protective Plate (PR Series)

Protective Plate( PR-LFV3 Series )

  • Protective plates are available to prevent any reductions in performance due to intrusion of foreign matter into the lights.
  • Anti-reflective (AR coating) has been applied.

* Be aware that installing a protective plate may reduce image resolution.

Protective Plate( PR-LFV3 Series )

电源

Control Unit Guide(PDF)

  • PD4-6024-2-P

  • PD4-6024-2-E

  • PD4-6024-4-P

  • PD4-6024-4-E

  • PD4-12024-2-P

  • PD4-12024-2-E

  • PD4-12024-4-P

  • PD4-12024-4-E

  • PD3-10024-8-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • POD-22024-4-PEI

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-W-1

    Cable length: 1 m
    2-branch cable

  • FCB-W-2

    Cable length: 2 m
    2-branch cable

  • FCB-W-3

    Cable length: 3 m
    2-branch cable

  • FCB-W-5

    Cable length: 5 m
    2-branch cable

  • FCB-F-1

    Cable length: 1 m
    4-branch cable

  • FCB-F-2

    Cable length: 2 m
    4-branch cable

  • FCB-F-3

    Cable length: 3 m
    4-branch cable

  • FCB-F-5

    Cable length: 5 m
    4-branch cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
