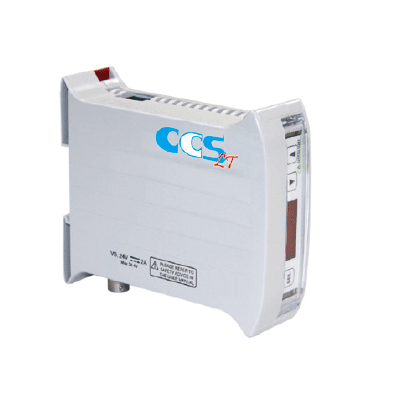

OC-0736-1-ET

Dedicated controller for OLF-LT / OLB-LT Series(Organic LED Lights for Machine Vision)

  • A predictive maintenance function is provided by automatically recognizing connected lights and accumulating data on lighting usage.
  • 24 VDC Input
  • Equipped with 1 channel
  • Regular Emission, ON/OFF Emission,
    Strobe Emission (With Overdrive Mode)
  • Configuration via Ethernet or buttons on the panel
  • Strobe Light Emission Time Setting: 100µs to 10 ms (100µs units)
  • Light Emission Delay Time Setting: 2µs to 10 ms (100µs units)
  • Weight: 300 g max.

产品详细信息

通道数 1 channel
发光方式 Regular Emission [Continuous], ON/OFF Emission [Switch], Strobe Emission (With Overdrive Mode) [Pulse]
发光时间设定 [Strobe light] 100 µs to 10 ms (100 µs units)　
驱动方式 Constant-current system
调光 Manual: Operation on the front panel
External: Command input via TCP/IP or UDP communications(Ethernet)
输入电压 24 VDC (21.6 to 26.4 V)
消耗功率 12 W [Continuous light emission at time of maximum load ]
发光延迟设定 2 µs to 10 ms [100 µs units]
发光延迟 [Strobe emission response speed] Max. 10 μs　　 [ON/OFF emission response speed] Max. 100
触发 [Trigger cycle] Max. 100 Hz [Trigger input] 3 to 24 VDC input TTL, NPN, and PNP Input impedance (nominal) 8 kΩ(Trigger input)
输入电流 1 A [ Input current peak ]
适合规格 [CE marking] EMC standard: Conforms to EN61000-6-2, EN61000-6　 [Environmental regulations] RoHS2 compliant
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85% RH (with no condensation)
保存温湿度 Temperature: - 20 to 60°C, Humidity: 20 to 85% RH (with no condensation)
冷却方式 Natural air cooling
重量 300 g max.
附属品 Wurth 351 Series 2 pins x1, Wurth 361 Series 4 pins x1
注意事项 Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode.

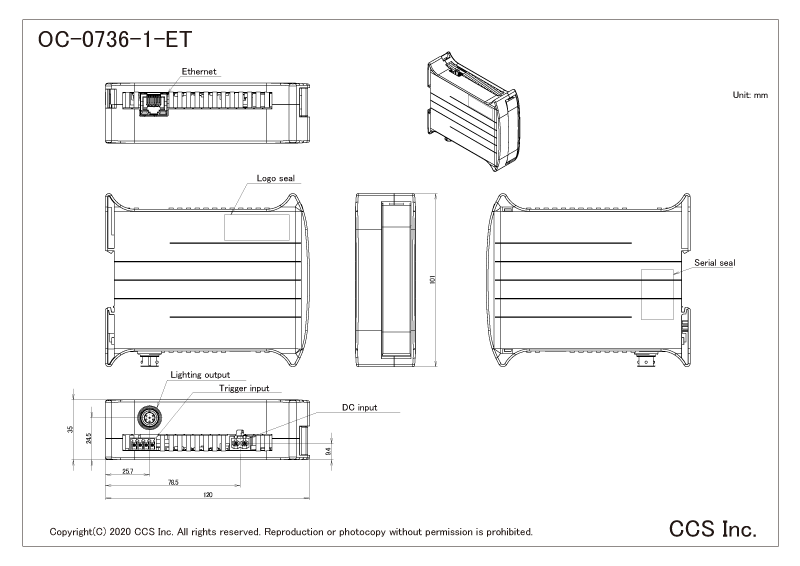

外形尺寸图(mm)
