HLV3-22SW-4-NR

This Light Source emits white light and has an outer diameter of 22 mm, a tip diameter of 14 mm, a light-emitting surface diameter of 10 mm, and a total length of 48.1 mm.

产品详细信息

LED发光颜色 White
相关色温 5,600 K typ.
外观尺寸 Outer diameter: 22 mm, Tip diameter: 14 mm, Total length: 48.1 mm
消耗功率 3.5 W max.
极性, 信号 1: Signal, 2: (+), 3: (-)
线缆长度 300 mm
外壳材质 Aluminum alloy
输入端口 SMR-03V-B
输入电流 1000mA
适合规格 CE, UKCA, RoHS, IEC 62471（High risk）
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 37 g max.
附属品 使用说明书

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-HLV3-10

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 3 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

  • FRCB-HLV3-10

电源

Control Unit Guide(PDF)

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

适配光源

  • HFS-14-500

  • HFR-25-10

  • HFR-25-30

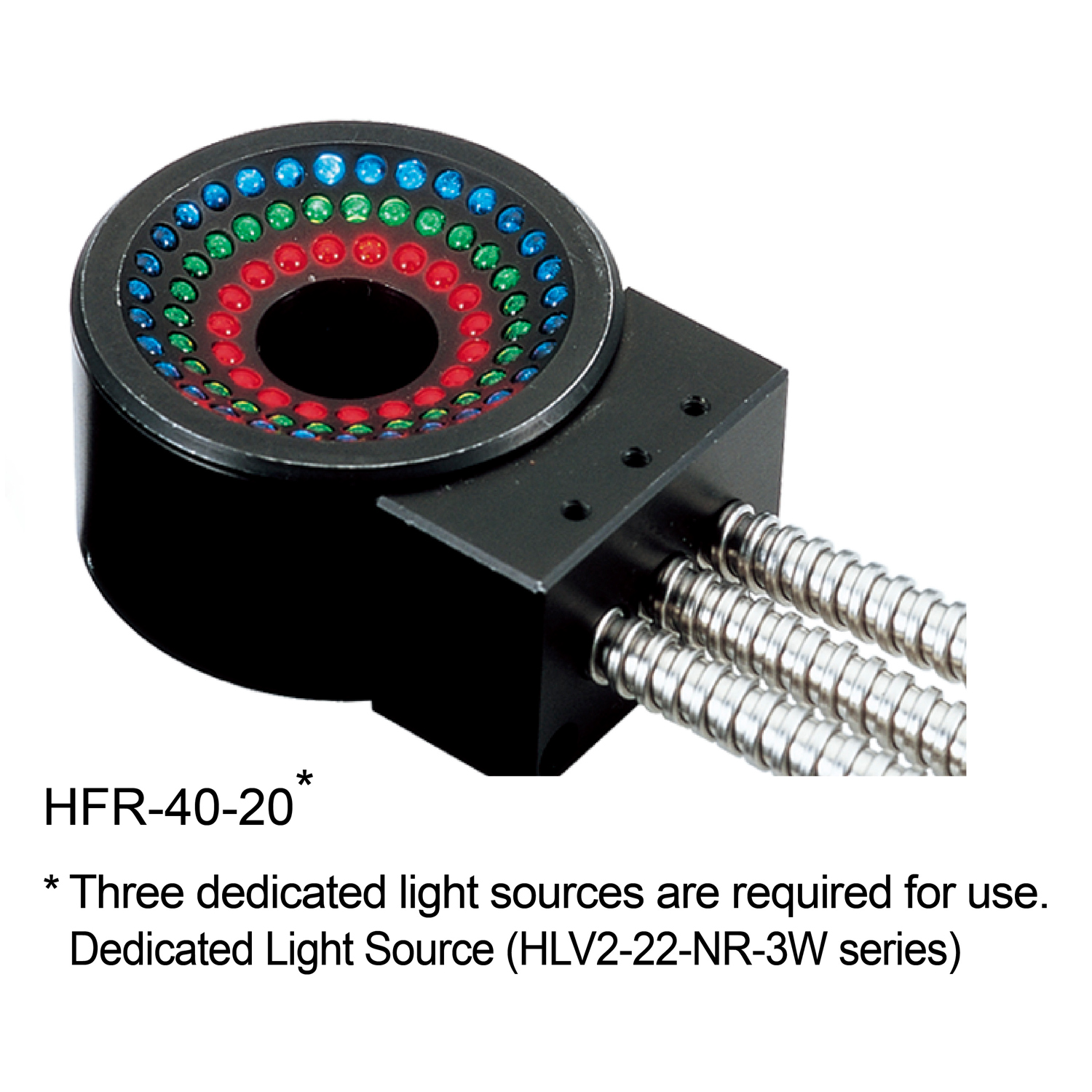

  • HFR-40-20

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
